Durable Construction and Finish
AutoConnect is constructed from robust, die-cast aluminum, painted with a highly durable finish. A 5,000-hour salt fog rating is standard with an available upgrade to a 10,000-hour salt fog rating for coastal installations and other areas with excessive environmental conditions.

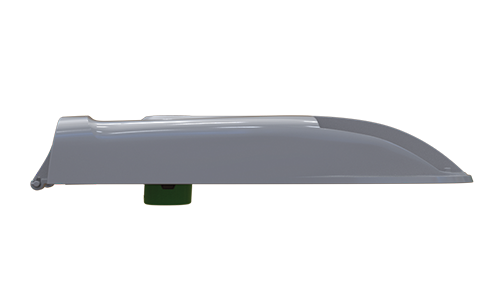

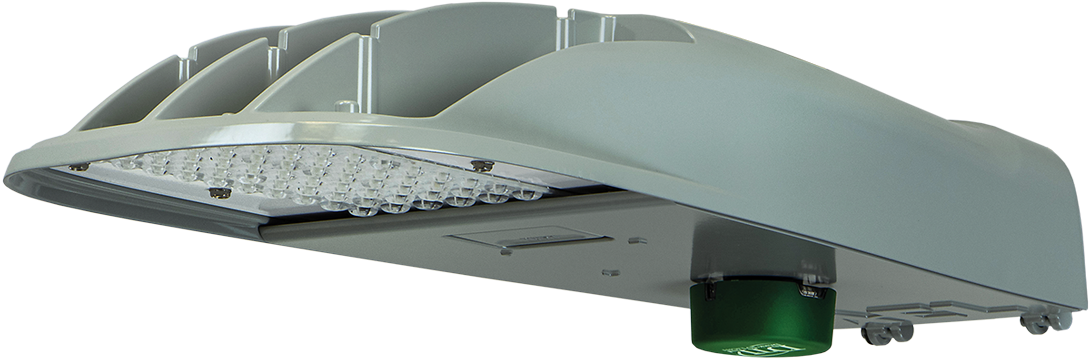

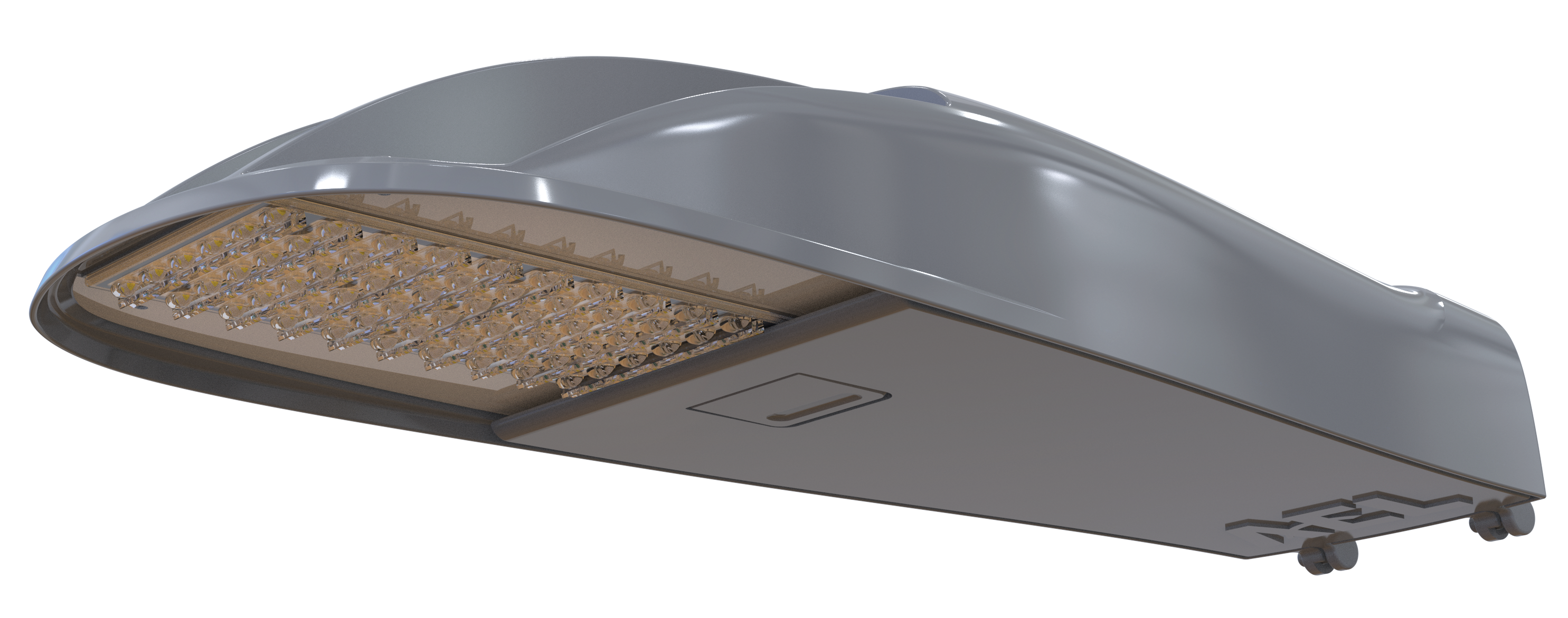

Sleek, traditional cobra head shape
The AutoConnect series provides a sleek, slightly modernized twist to the classic cobra head shape that Utilities and Municipalities everywhere have come to accept as an industry standard. This new shape has been reduced in footprint with light weights of 8, 12 or 17 pounds.

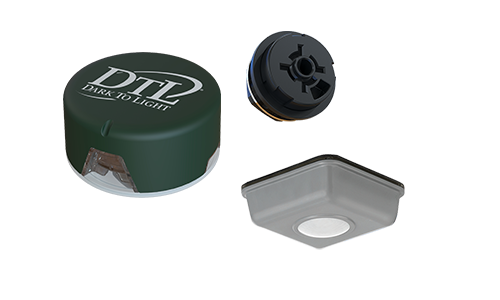

Top Control Position
This position can be configured in multiple ways…
DTL® DC Connect embedded low voltage dusk-to-dawn control.
Global Connect configuration for using either standard high voltage NEMA P7 receptacle or Zhaga receptacle for low voltage Zhaga controls and sensors.
This position can be left unpopulated.
•
•
•
DTL® DC Connect Embedded Control
Zhaga Receptacle
NEMA P7 Receptacle
DTL® Local Connect embedded low voltage control featuring Bluetooth point-to-point control and asset management.
Global Connect configuration supports Zhaga receptacle for low voltage controls and sensors.
For area applications, you can integrate the AutoConnect into an nLight® network with the nLight® AIR rSDGR control featuring occupancy sensor.
This position can be left unpopulated.
•
•
•
•
Bottom Control Position
This position can be configured in multiple ways…
NEMA P7 Receptacle
Zhaga Receptacle
DTL® Local Connect Embedded Control
nLight® AIR rSDGR

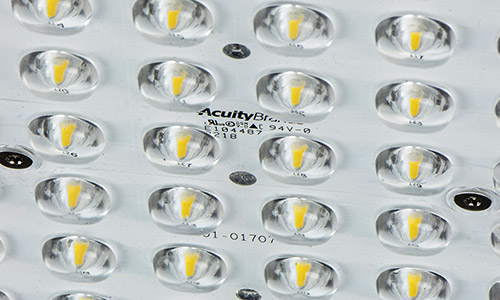

Next Gen Light Engine & Optics
Replaces 50-400W HID roadway and area product
Save Energy with up to 175 lumens per watt
Lumen packages from 2,000 to 29,000 lumens
Highly durable, precision molded silicone optics
Visually comfortable 2700K, 3000K, 4000K & 5000K (70 CRI min.)
Choose from Types 2, 3, 4 or 5 distributions
•
•
•
•
•
•
The AutoConnect lighting control platform provides interoperability with
D4i driver technology. D4i is the DALI standard for intelligent IoT-ready luminaires. D4i is about the network inside the luminaire (driver, sensor, control) and it ensures interoperability between all components. D4i defines a feature set that is supported by the driver and accessed via DALI-2 protocol. Note that per ANSI C137.4 the committee for lighting systems has adopted the D4i standard for roadway products.

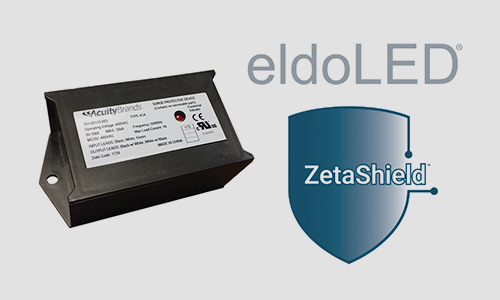

Intelligent DALI D4i Digital Drivers from eldoLED®
20kV/10kA extreme surge protection is standard.
XVOLT option with ZetaShield™ technology provides protection from dropped neutrals and other poor power quality conditions on a 277-480V circuit.
•
•
Protection Against Surge and Poor Power Quality

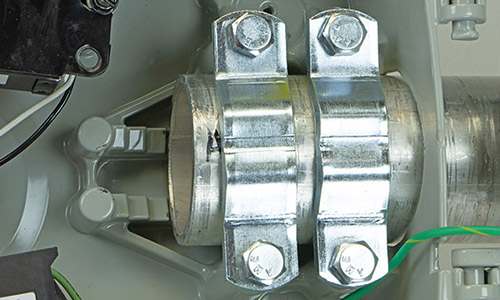

Robust Mounting
AutoConnect ACM & ACL offer either two or four bolt mounting for reliable installation. All AutoConnect models are 3G-rated for roadway and bridge applications.

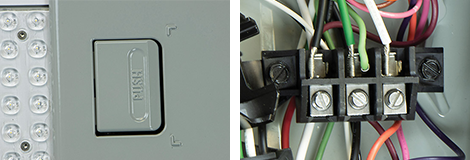

Utility-friendly pushbutton latch provides quick and easy
toolless entry.
Pre-wired 3-stage terminal block makes wiring a breeze.
Internal bubble level simplifies and expedites installation process.
•
•
•
Utility-friendly

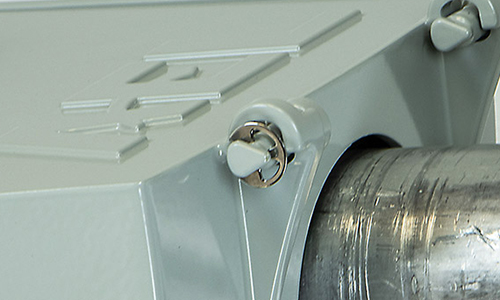

Captured Hinge for Safety
Stainless captive hinge hardware helps to ensure that the door stays in place, providing a level of safety for installers and anyone under the pole.
