High-Speed Modular Connectors

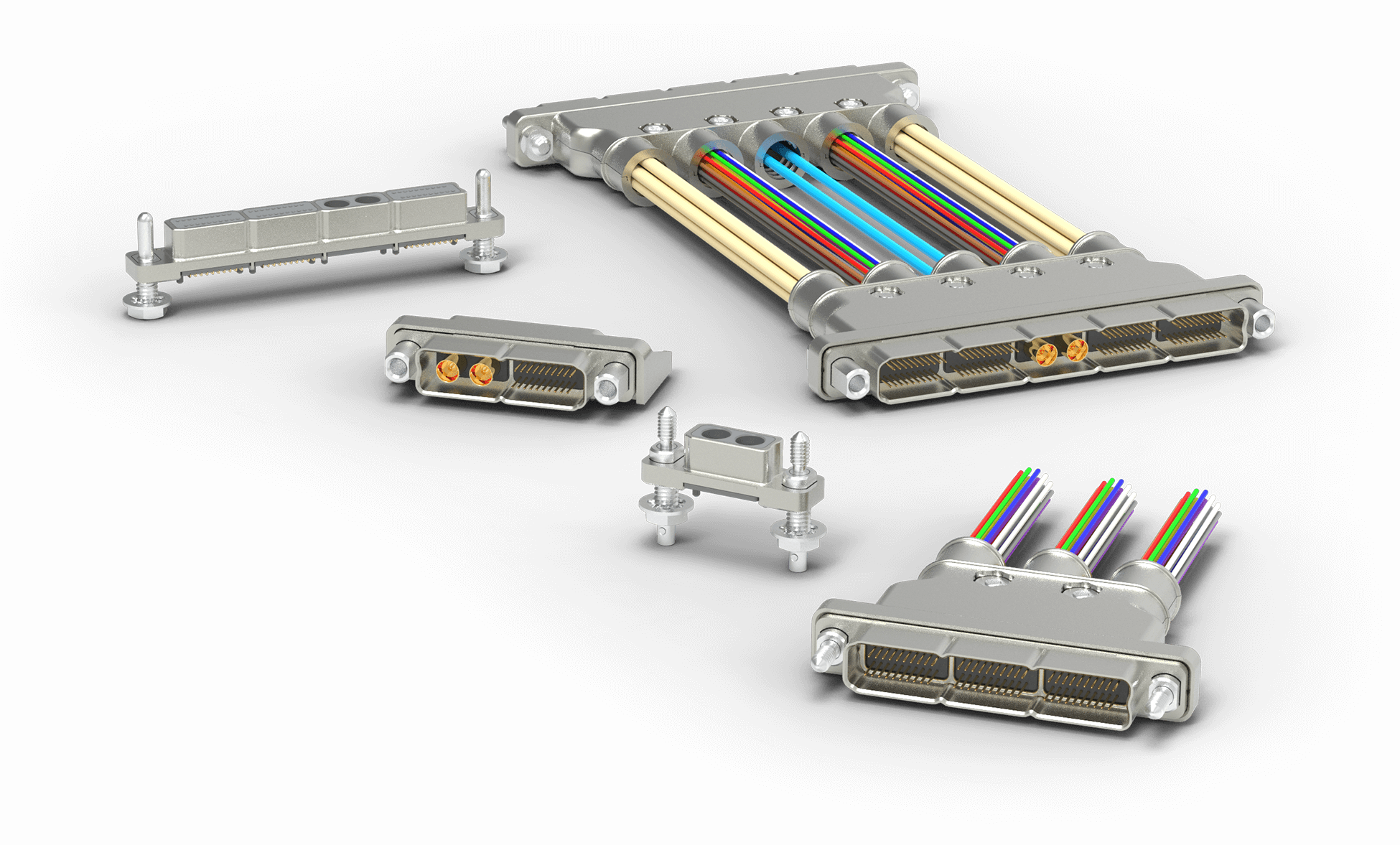

SInergy is a 1-5 bay mini-modular hybrid interconnect solution with configurable signal interfaces. SInergy is a high-speed (up to 25Gbps), high-density family of connectors.

− High-density, configurable multiple bays − Interchangeable signal & SMPM RF − Tested based on MIL-DTL-83513

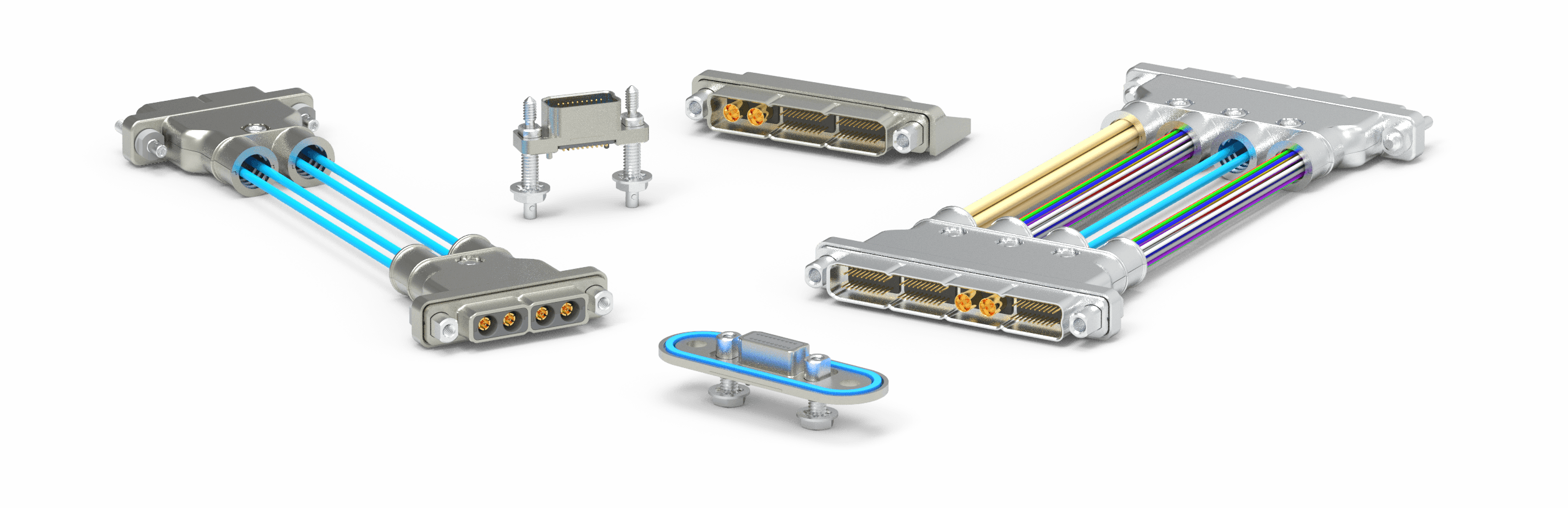

Why SInergy?

SINergy Contacts

− IPC-A-610 Class 3 SMT termination − Locking, jacking, & guide hardware − Rugged, die-cast metal bodies

performance requirements

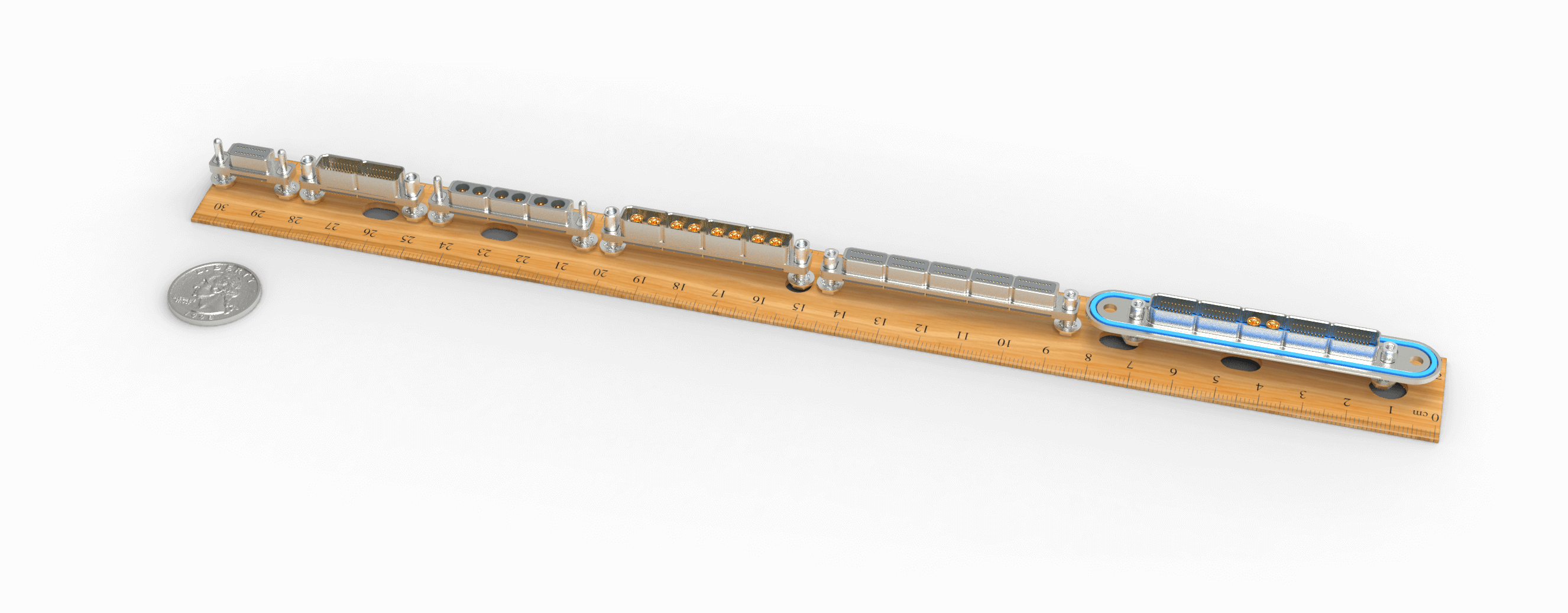

You can fit a 1, 2, 3, 4, & two 5-bay SInergys on a 12" (30cm) ruler. 1 & 2 bay SInergy's are roughly the size of a U.S. quarter.

SInergy Connectors Save Space

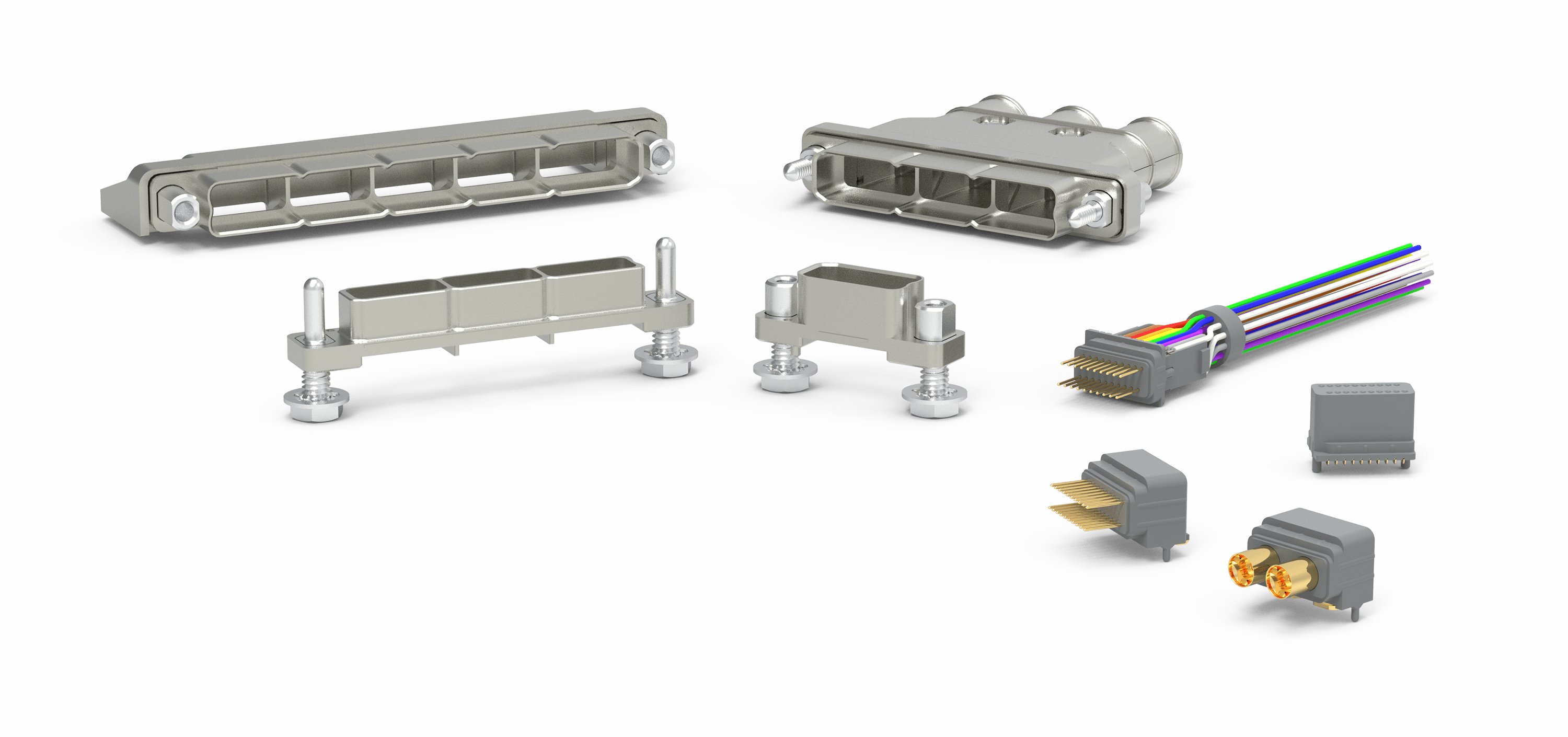

Open Modular Configuration

Mix and match any available module within a single interface. Sinergy is a highly configurable solution.

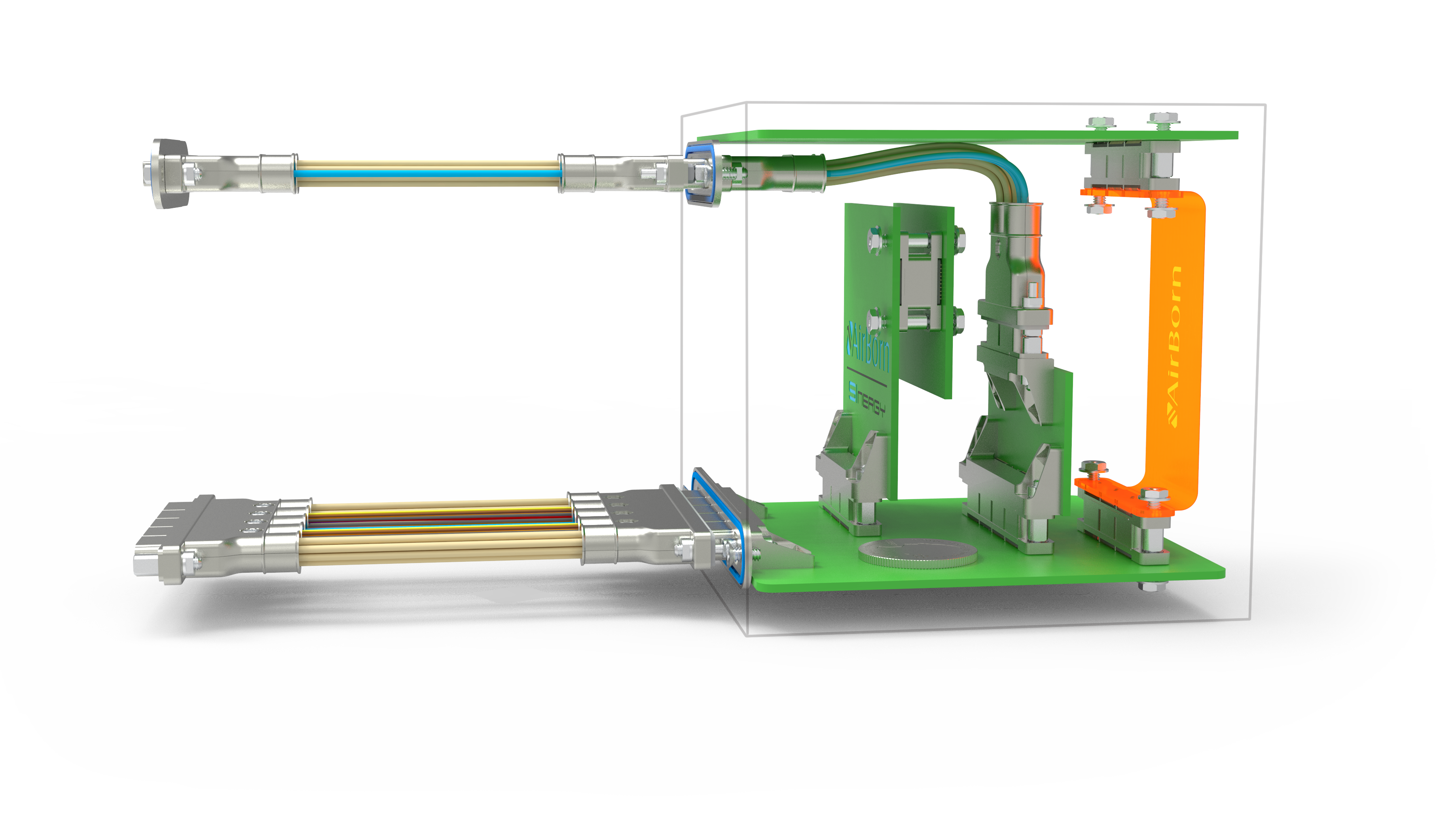

SInergy offers vertical board-mount, right-angle board-mount, cable I/O, and flex circuit mounting options to navigate intricate box design challenges.

Design Flexibility

Vertical to Vertical Flex Mezzanine

Vertical to Vertical

Cable to Right-Angle

5-Bay Cable to Panel-Mount Right-Angle

Panel-Mount Cable to Panel-Mount Cable

Right-Angle to Vertical

U.S. Quarter

Applications

SINergy Contacts

SINERGY Features

SInergy Benefits

Intro to SInergy

Airborn Advantage

Sinergy offers OEMs a mini-modular hybrid solution configured in 1-5 distinct bays to fit any customer requirement.

SInergy Modularity

1 Bay

2 Bays

3 Bays

4 Bays

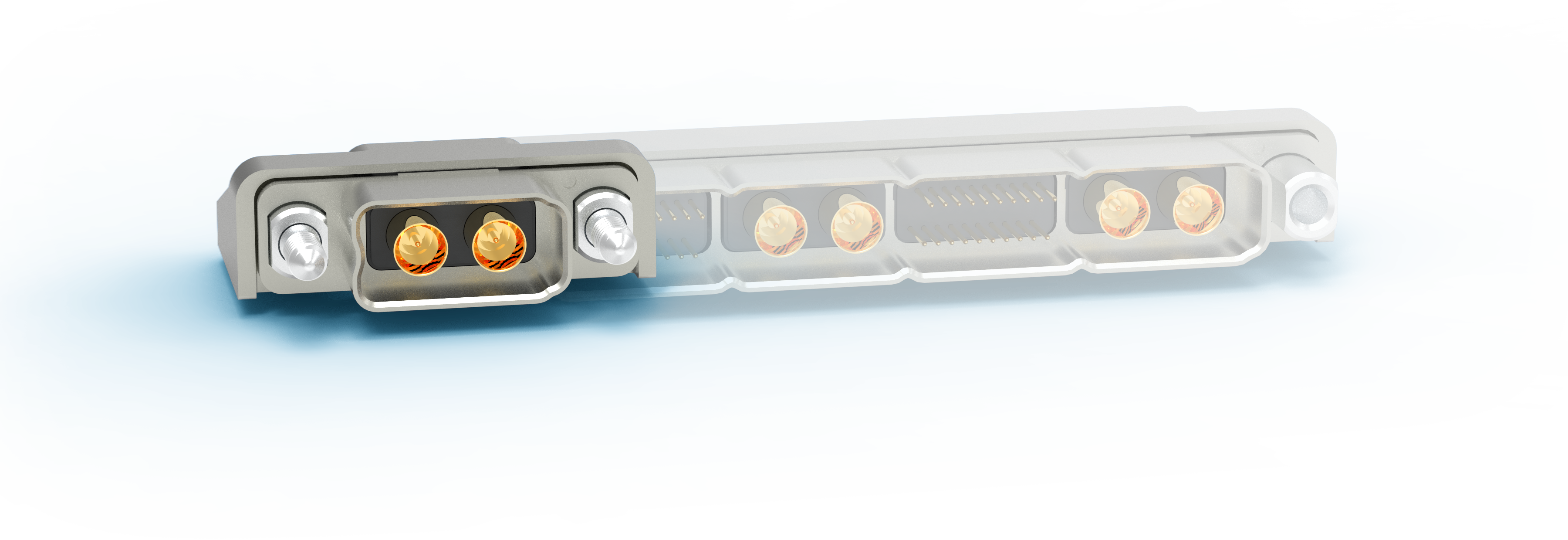

5 Bays

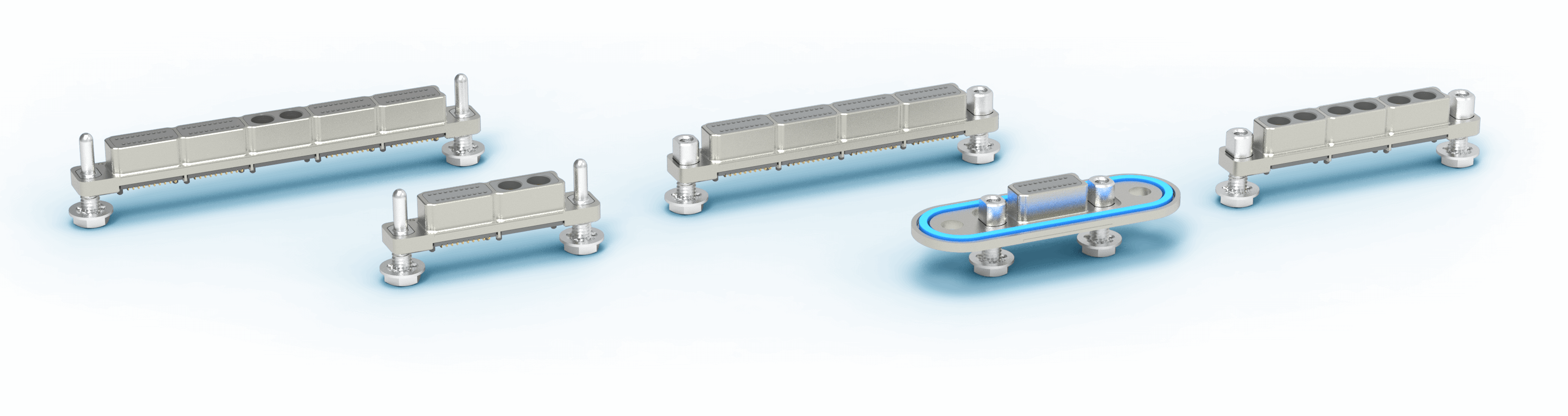

SVP: Vertical Plugs

− 1-5 bay, board-mount plugs − SMPM RF interface or high-density signal modules − Standard panel-mount options − Fixed Jack Post / Turning Lock Screw, Turning Jack Screw / Fixed Jack Post,

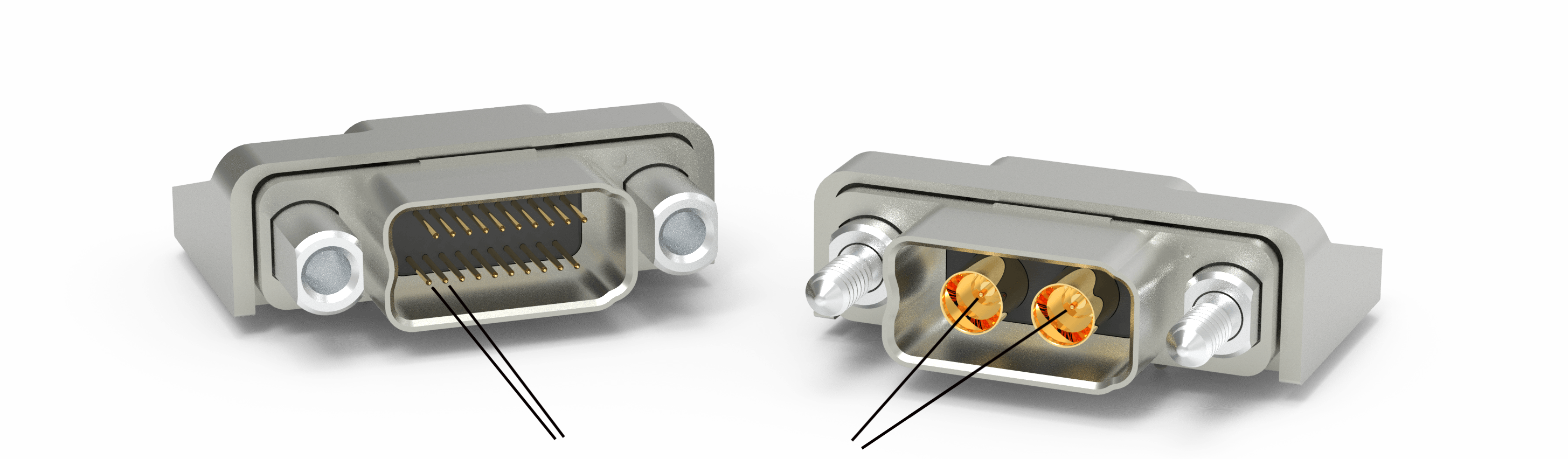

SInergy Contact Spacing

Discrete Wire: 0.0315" or .8mm

− 1-5 bay, right-angle, board-mount receptacles − SMPM RF interface or high-density discrete wire modules − Standard panel-mount options − Fixed Jack Post / Turning Lock Screw, Turning Jack Screw / Fixed Jack Post,

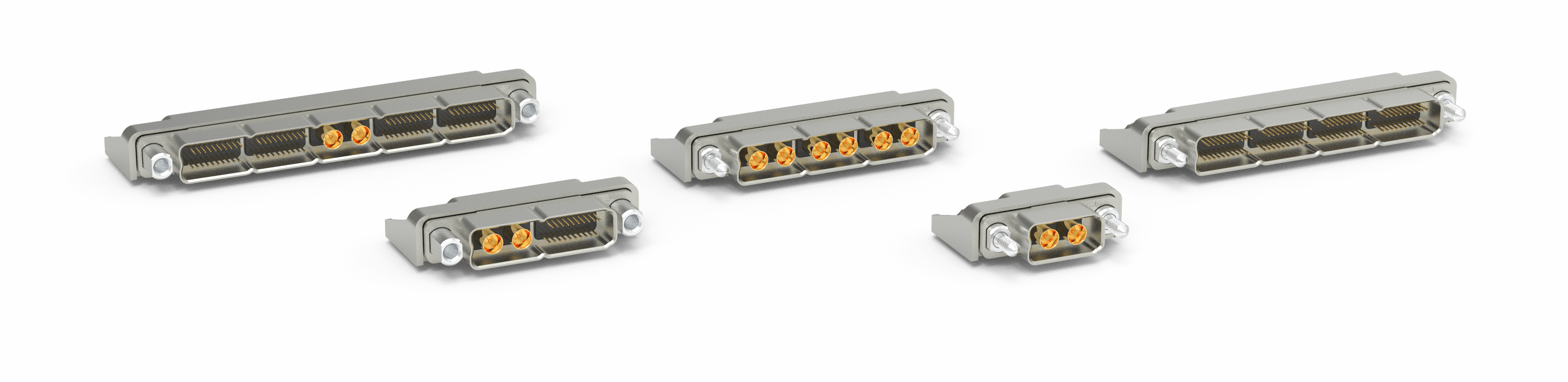

SRR: Right-Angle Receptacles

− 1-5 bays − Twinaxial cable, Discrete wire, & SMPM RF options − Standard panel-mount options − Fixed Jack Post / Turning Lock Screw, Turning Jack Screw / Fixed Jack Post,

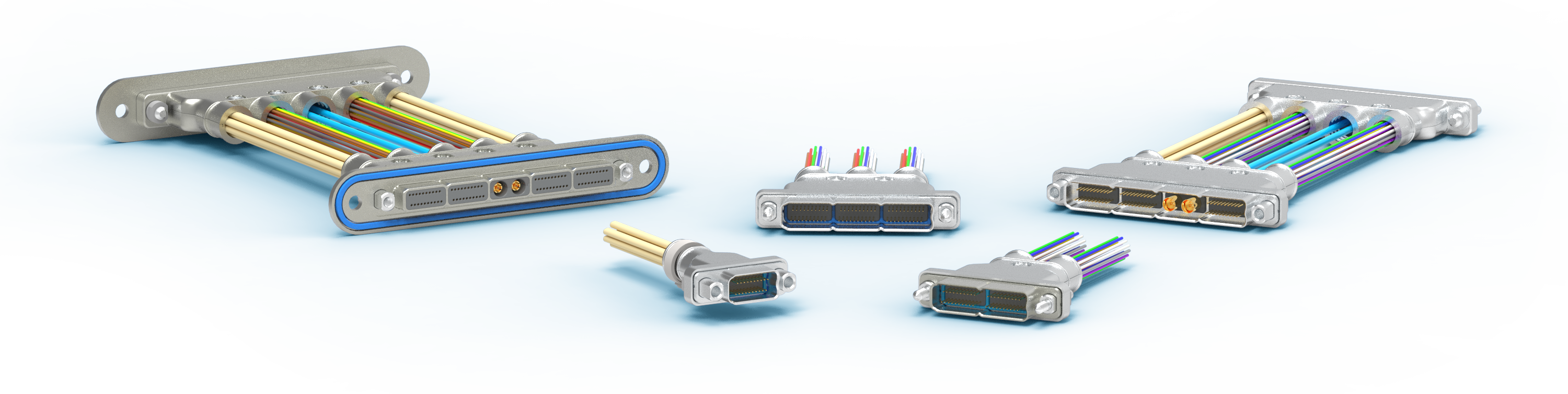

SC: Cable Assemblies

− Multiple hardware options available − Interface & panel-mount gaskets − Reliably mate & align your SInergy parts

SInergy Hardware

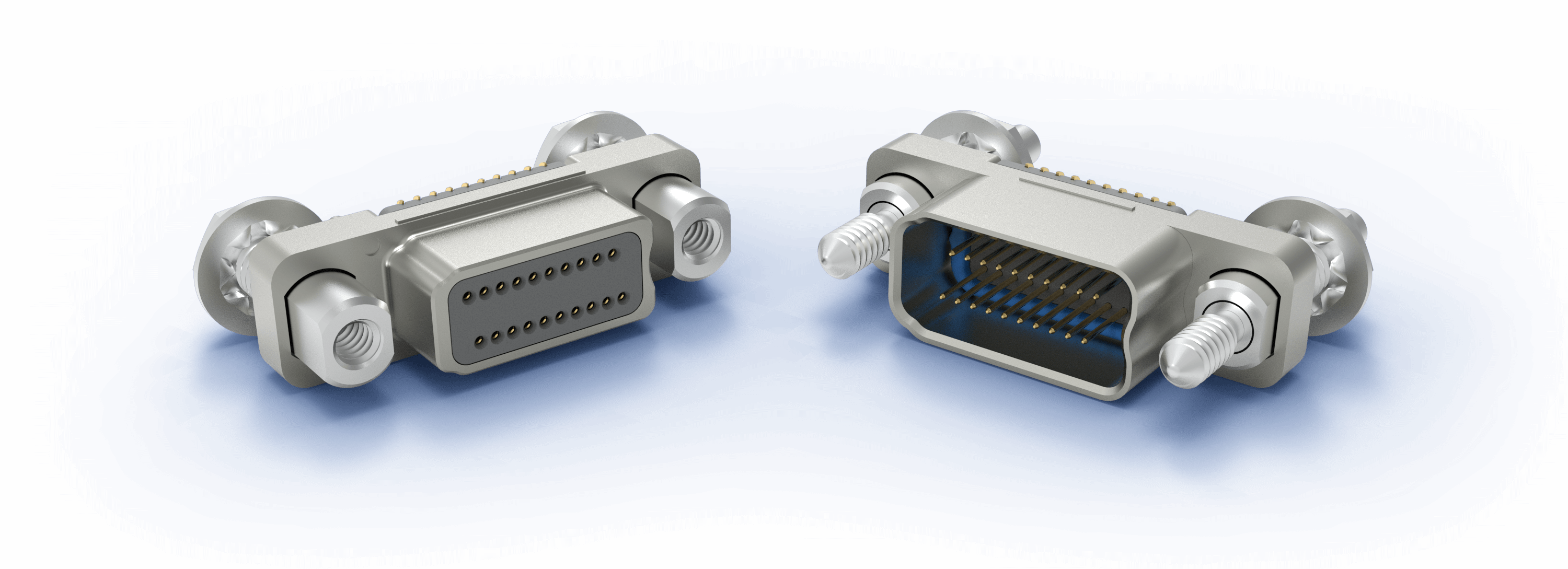

Fixed Jack Post / Turning Lock Screw

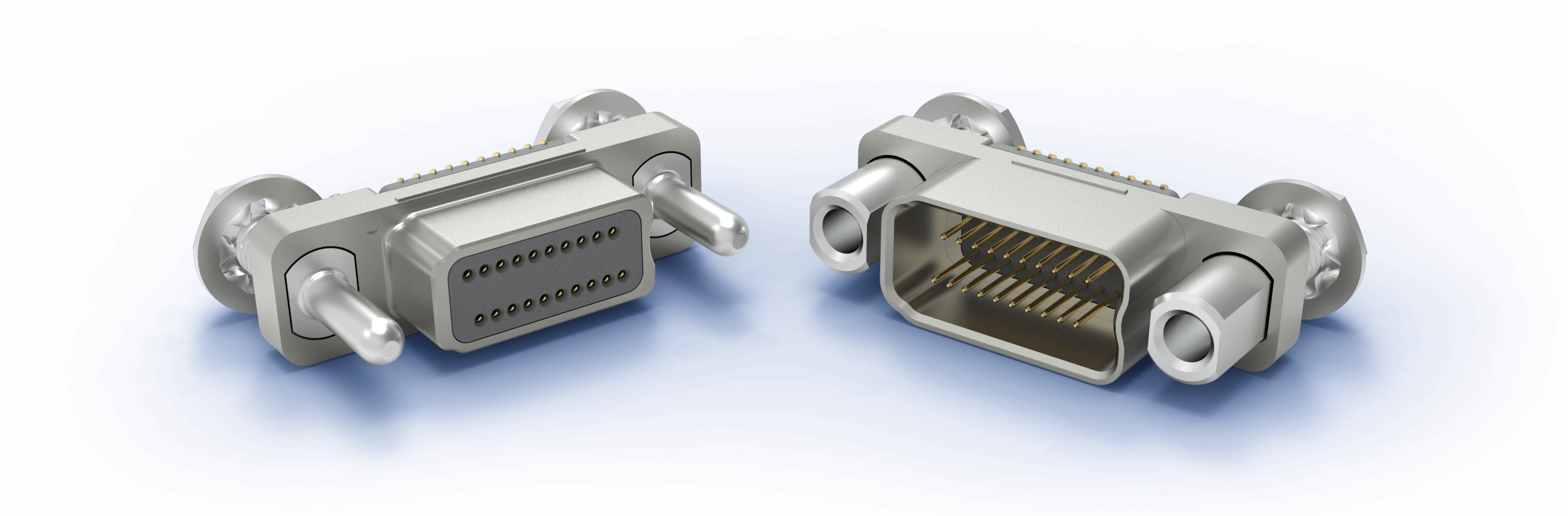

Guide Pin / Guide Socket

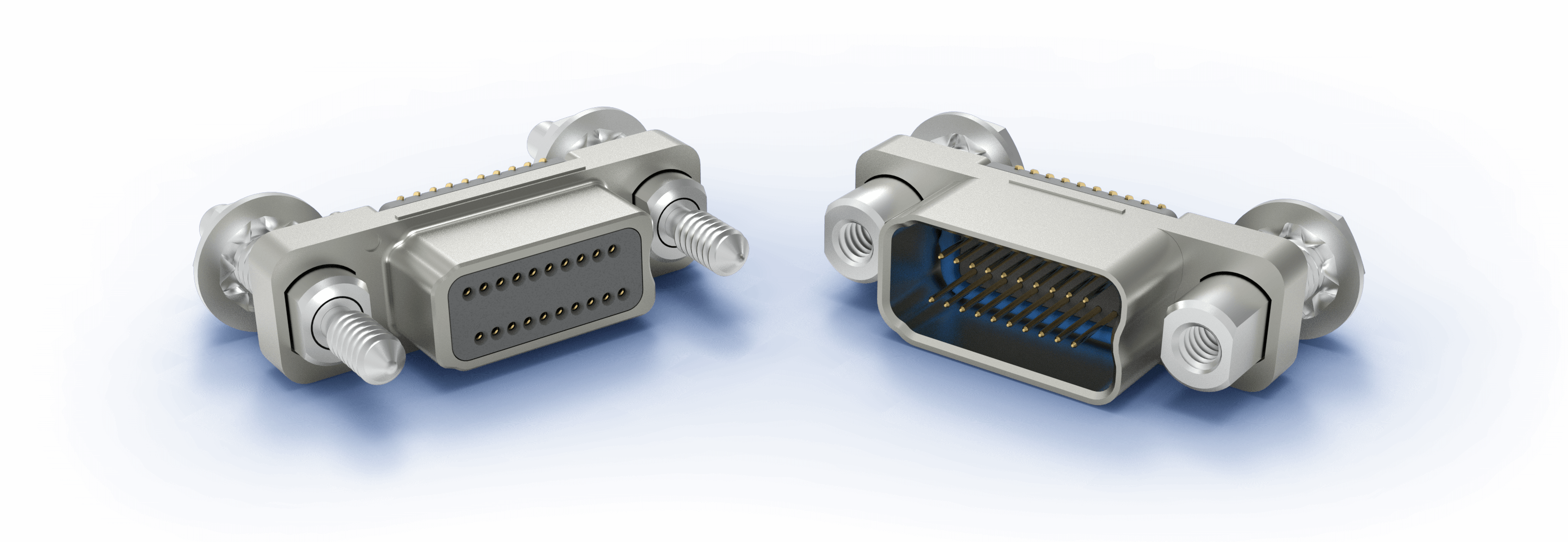

Turning Jack Screw / Fixed Jack Post

SMPM RF: 0.173" or 4.39mm

Twinax Cable

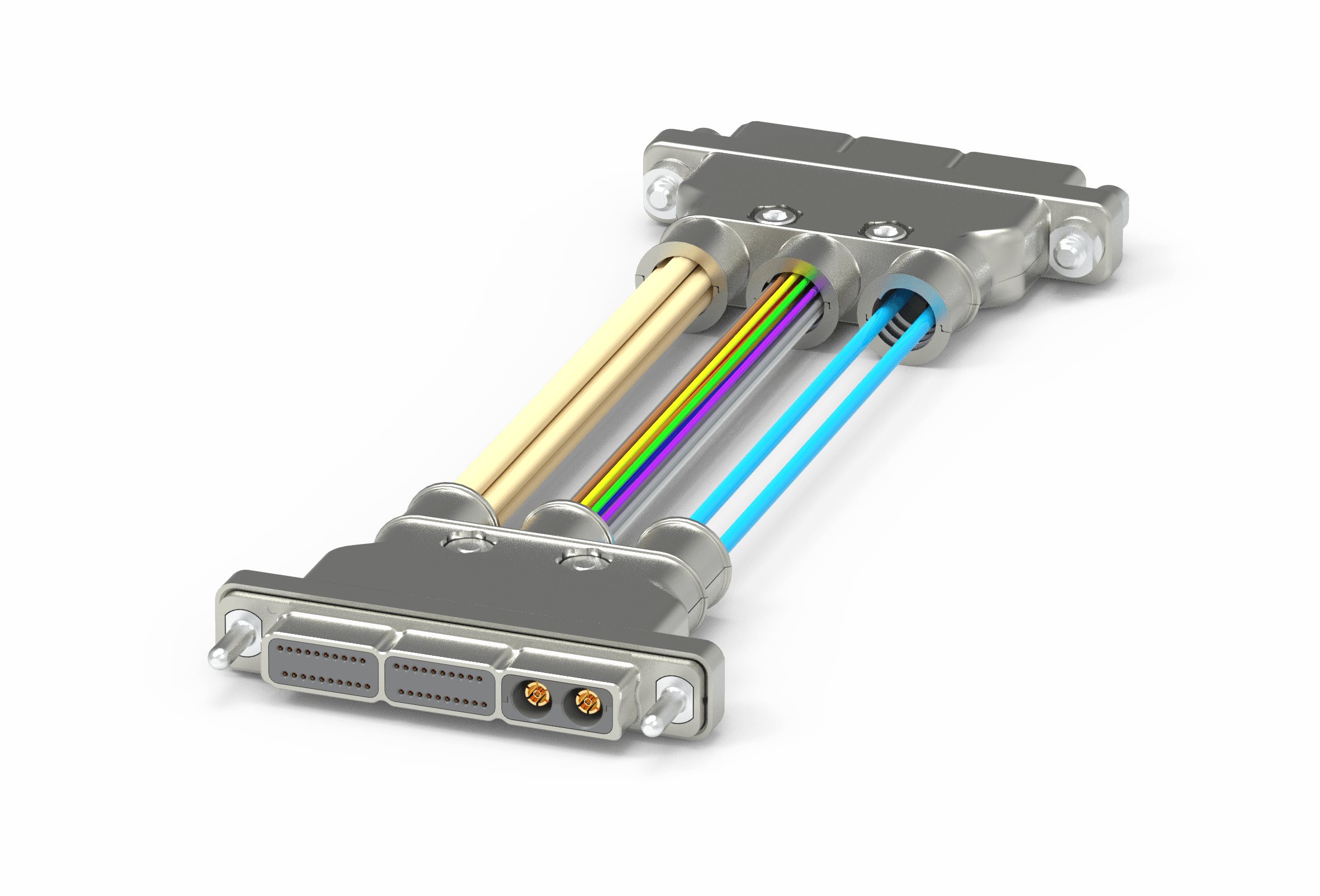

Cable Types

Discrete Wire

SMPM RF Cable

− 1-5 bays − Configure to fit your application

Applications

SINergy Contacts

SINERGY Features

SInergy Benefits

Intro to SInergy

Airborn Advantage

and Guide Pin / Guide Socket hardware options

− 1-5 bay, board-mount receptacles − SMPM RF interface or high-density signal modules − Standard panel-mount options − Fixed Jack Post / Turning Lock Screw, Turning Jack Screw / Fixed Jack Post,

and Guide Pin / Guide Socket hardware options

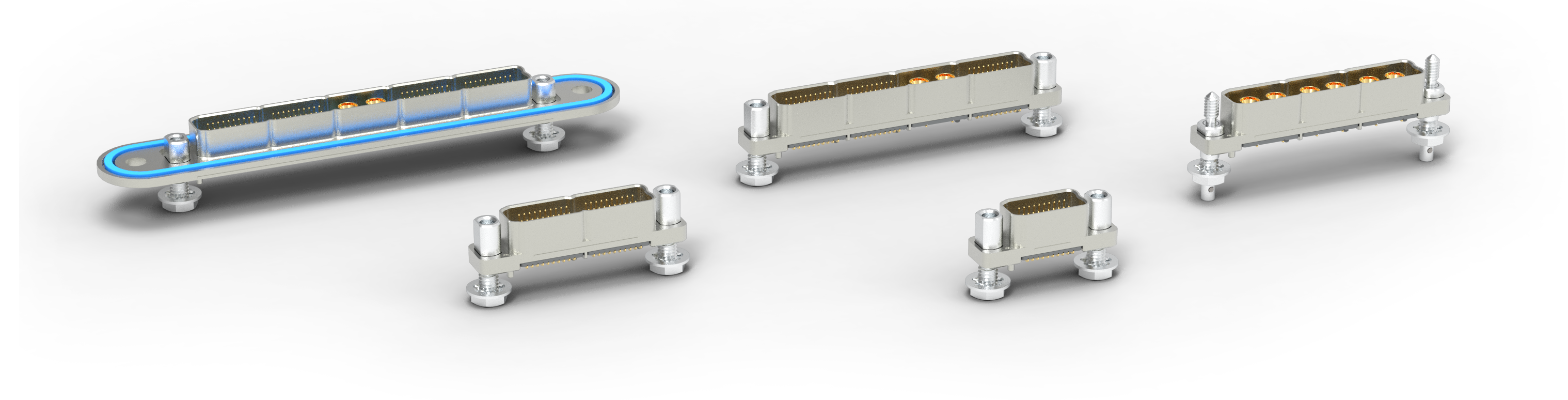

SVR: Vertical Receptacles

and Guide Pin / Guide Socket hardware options

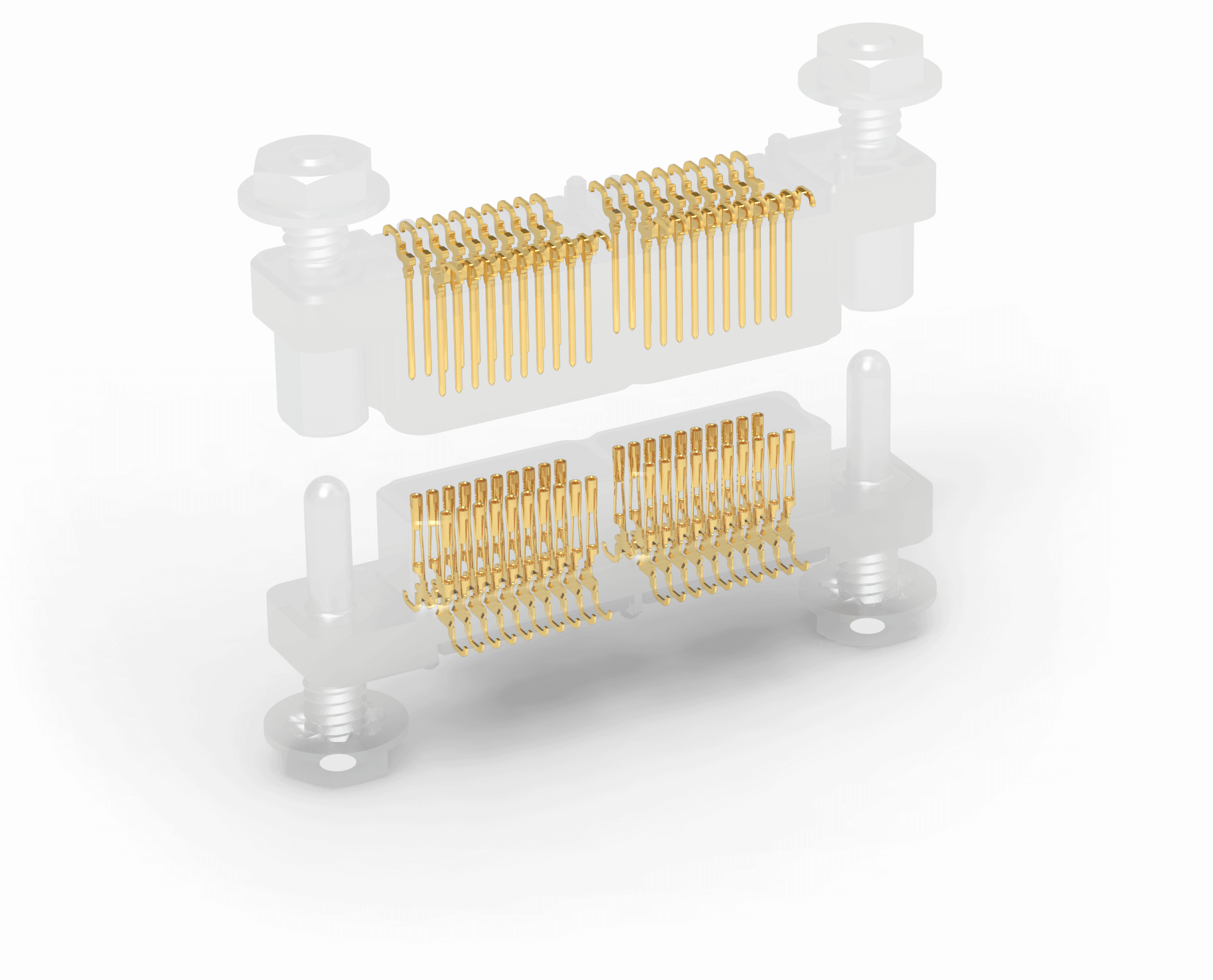

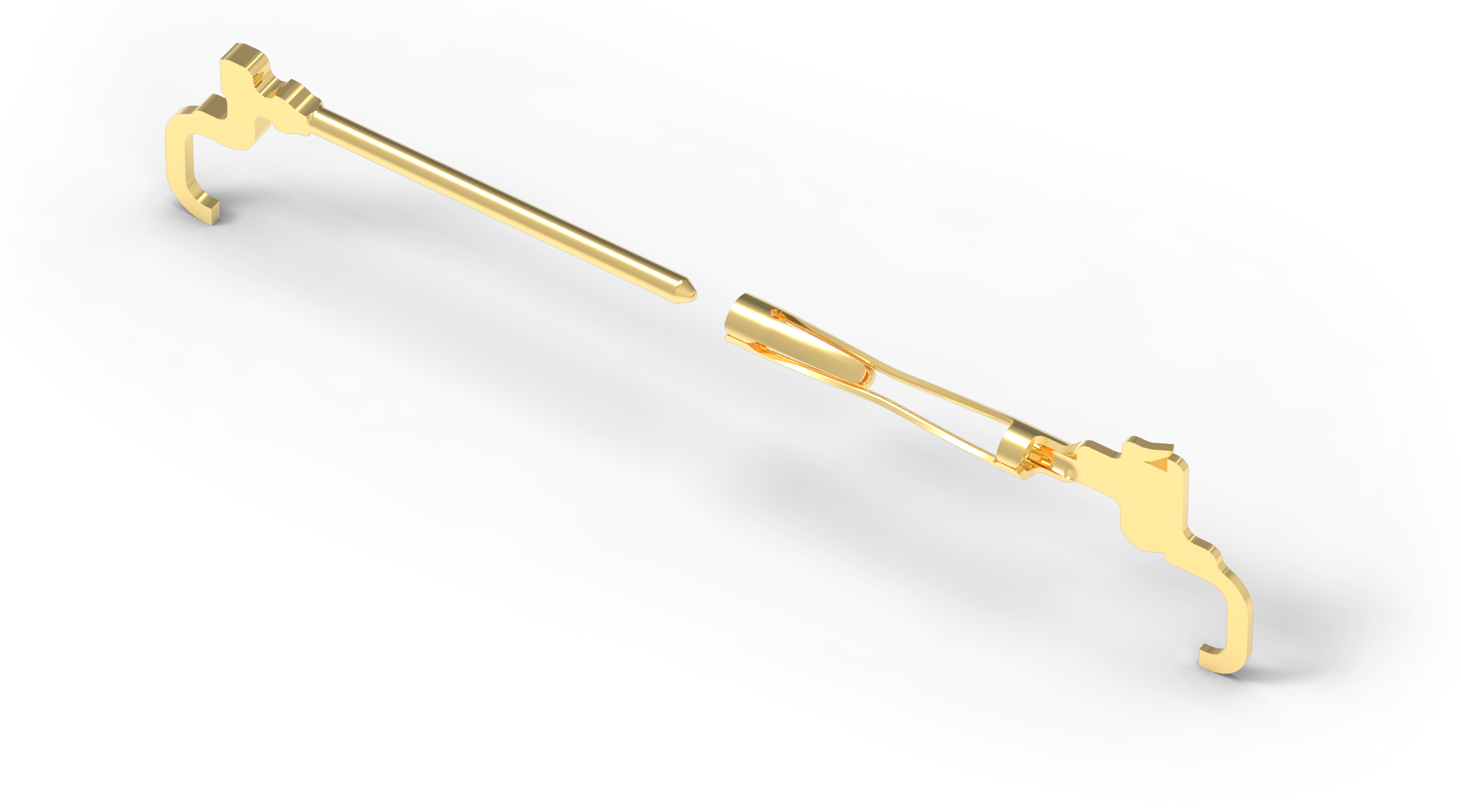

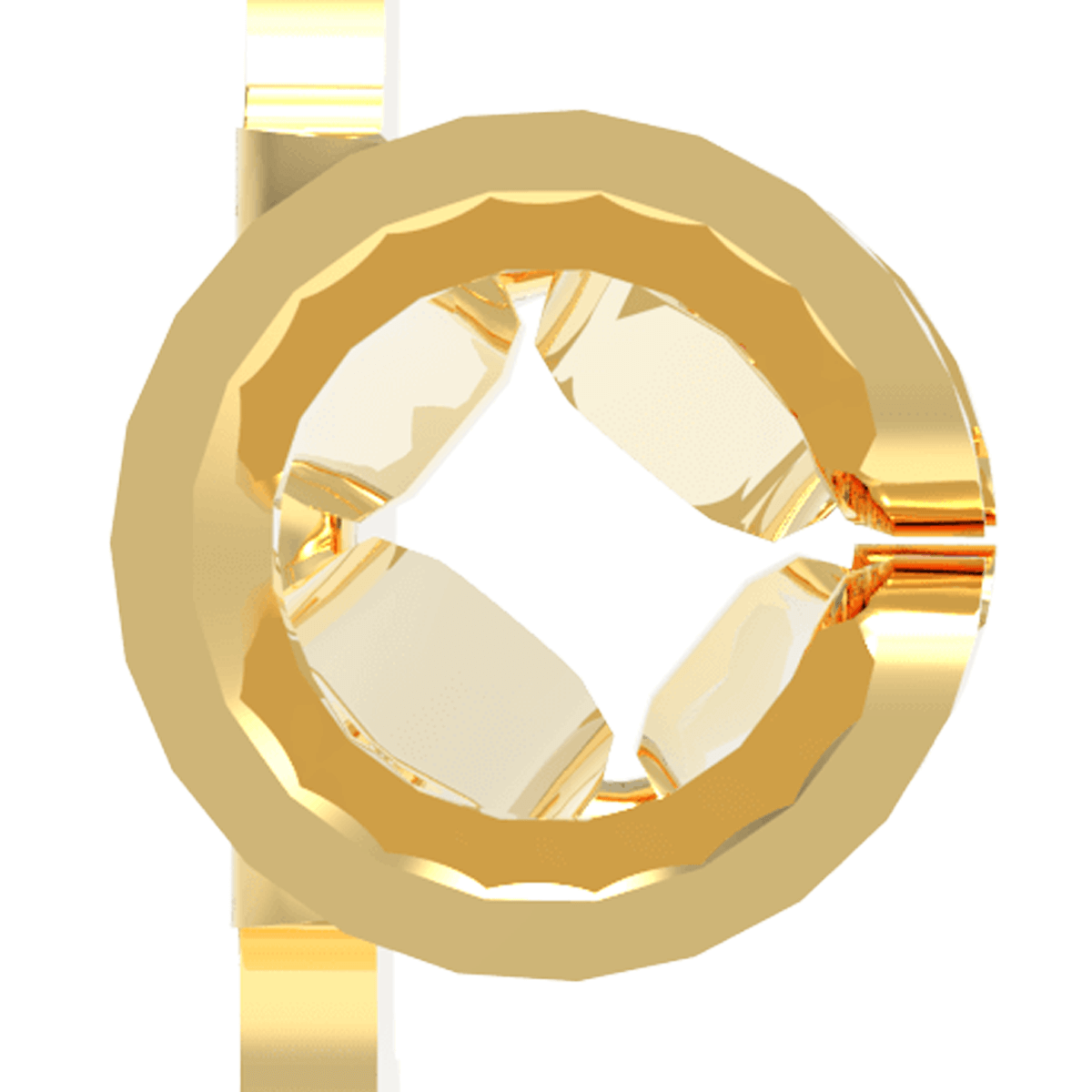

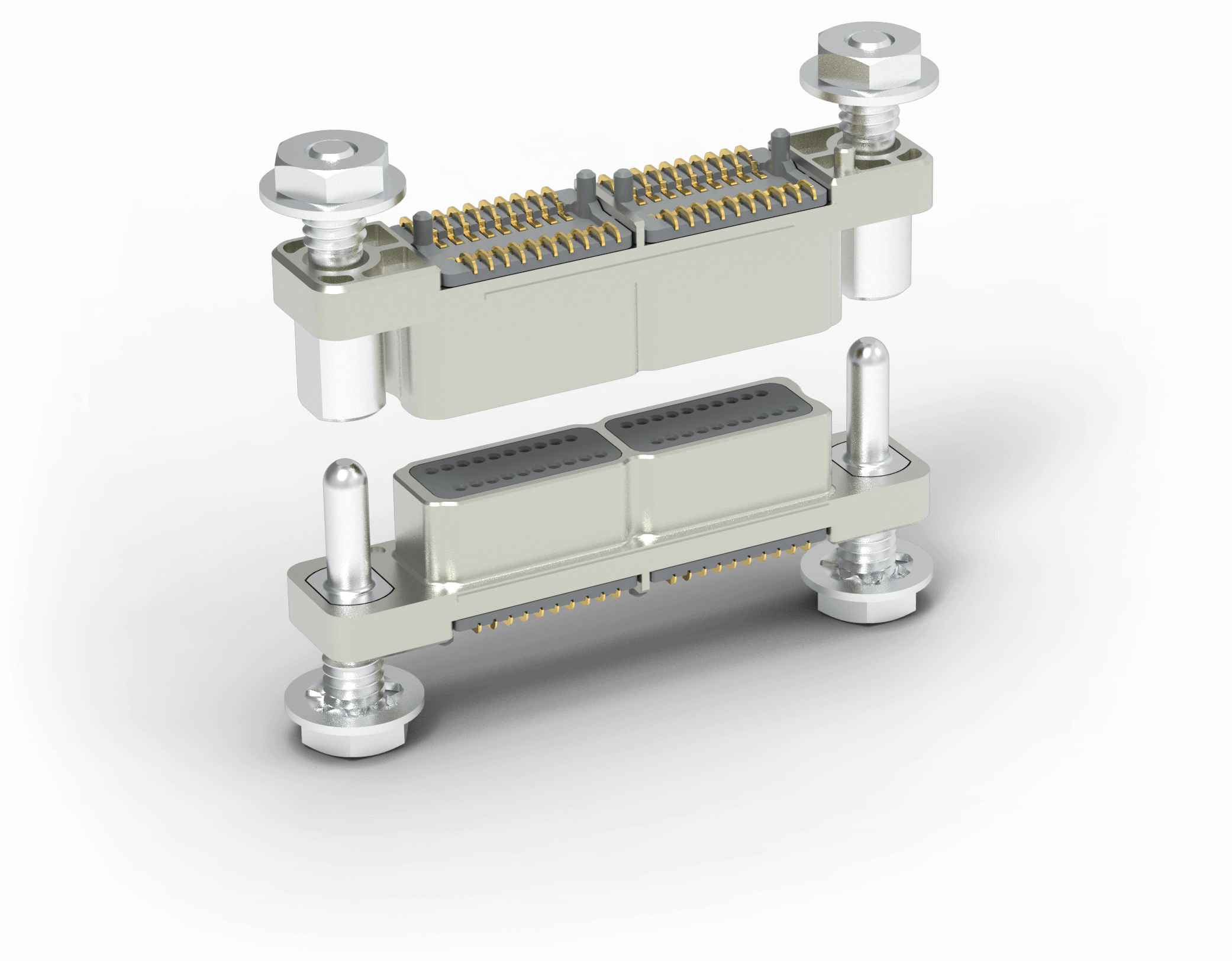

1 piece, 50 microinches of gold, 4 points-of-contact in opposing axes contact system. Termination meets IPC-610 Class 3 SMT requirement.

Robust Contact System

− Stamped 1-piece contacts − Low mating force − Qualified to 2,500 cycles

Contact Design

− .173" (4.39mm) pitch − Fixed Jack Post / Turning Lock Screw,

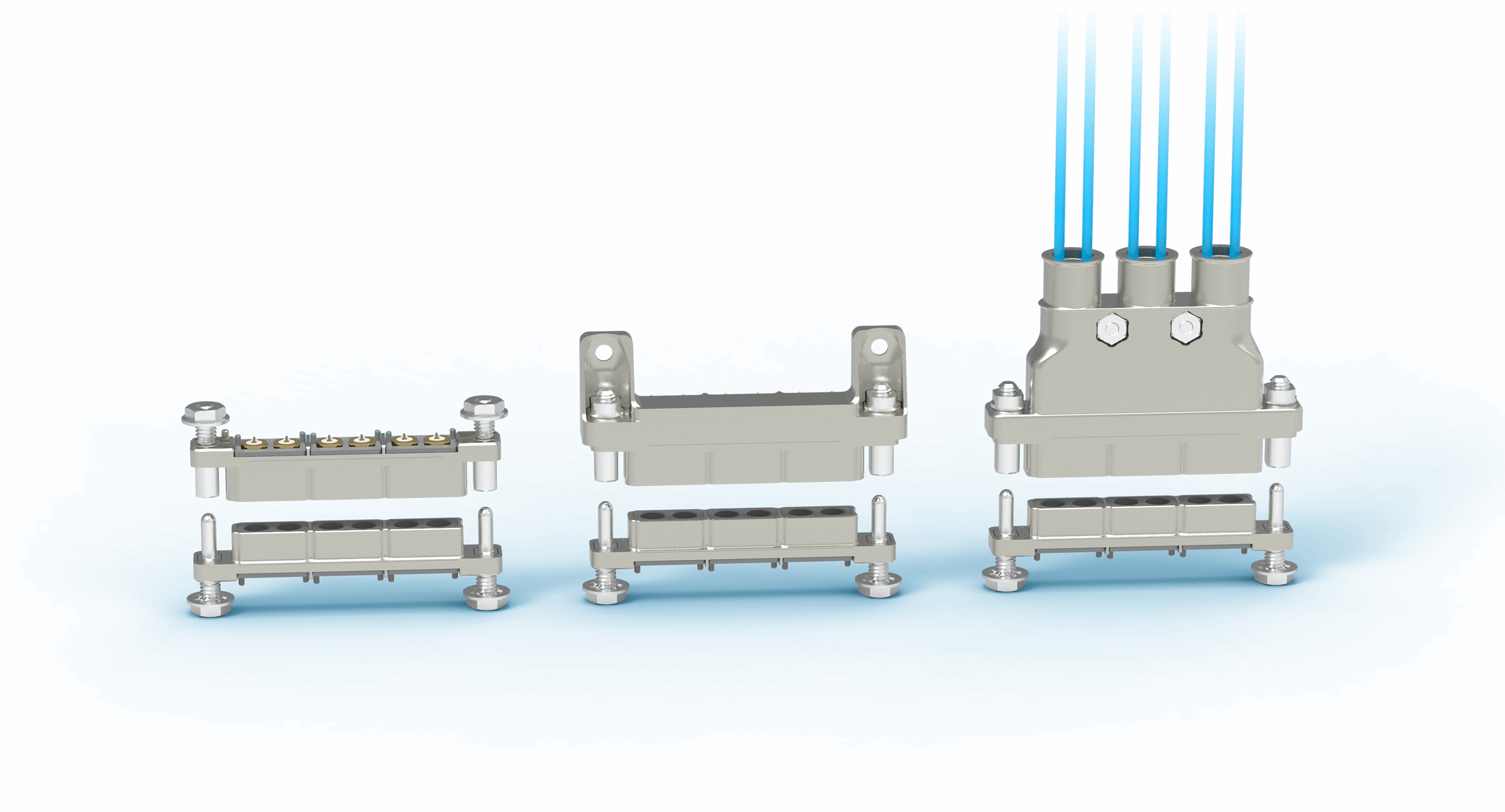

SMPM RF Interface

Applications

SINergy Contacts

SINERGY Features

SInergy Benefits

Intro to SInergy

Airborn Advantage

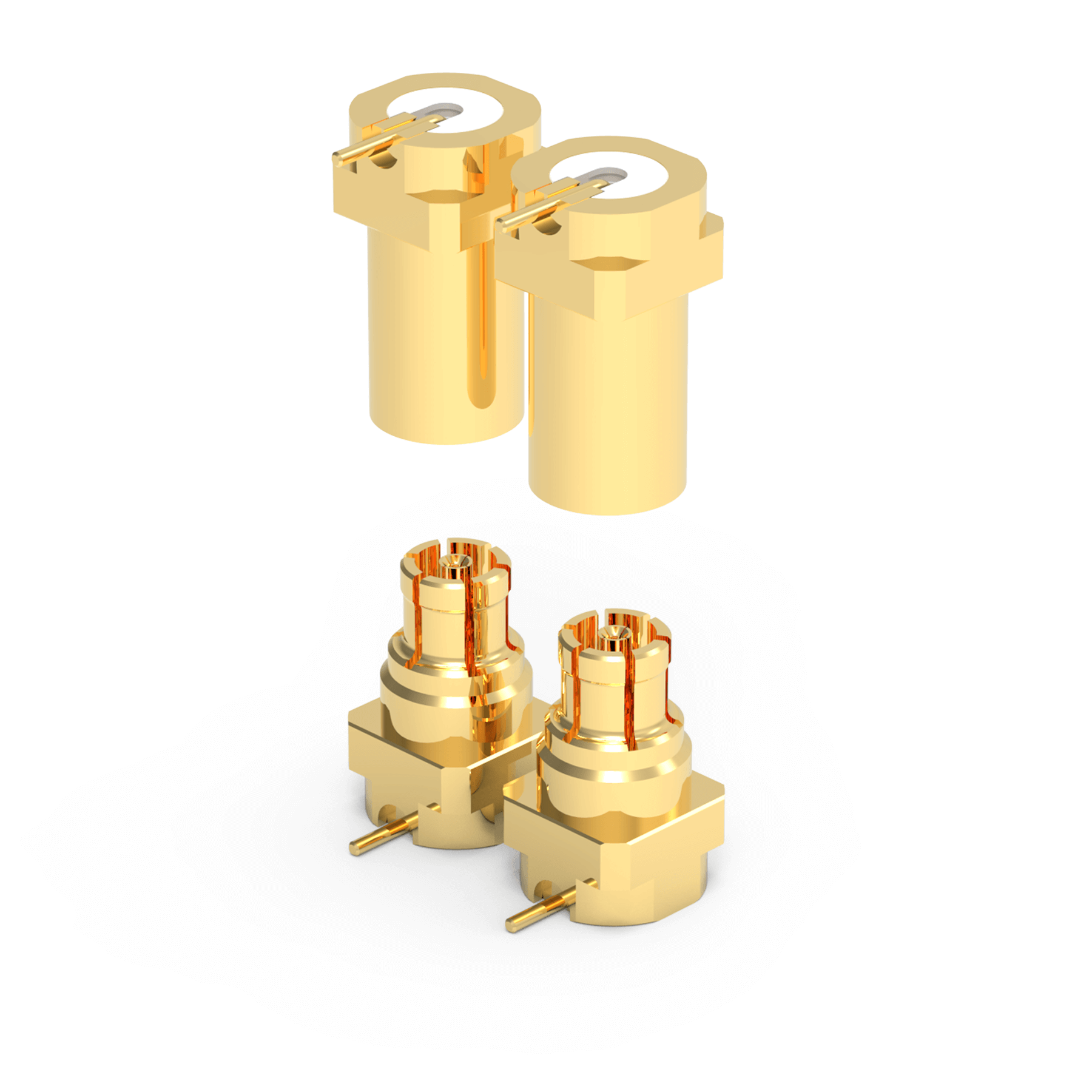

Vertical to Vertical

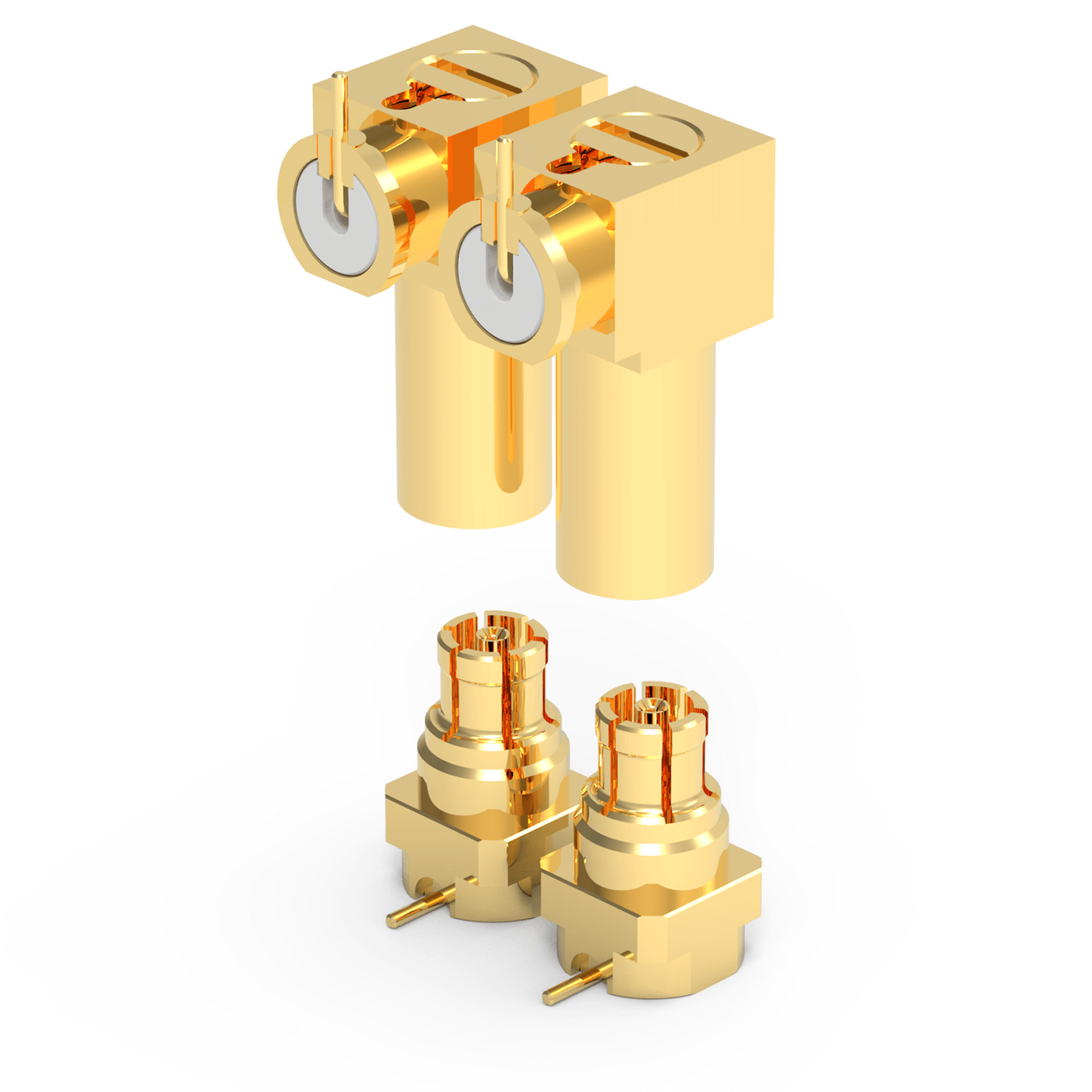

Right Angle to Vertical

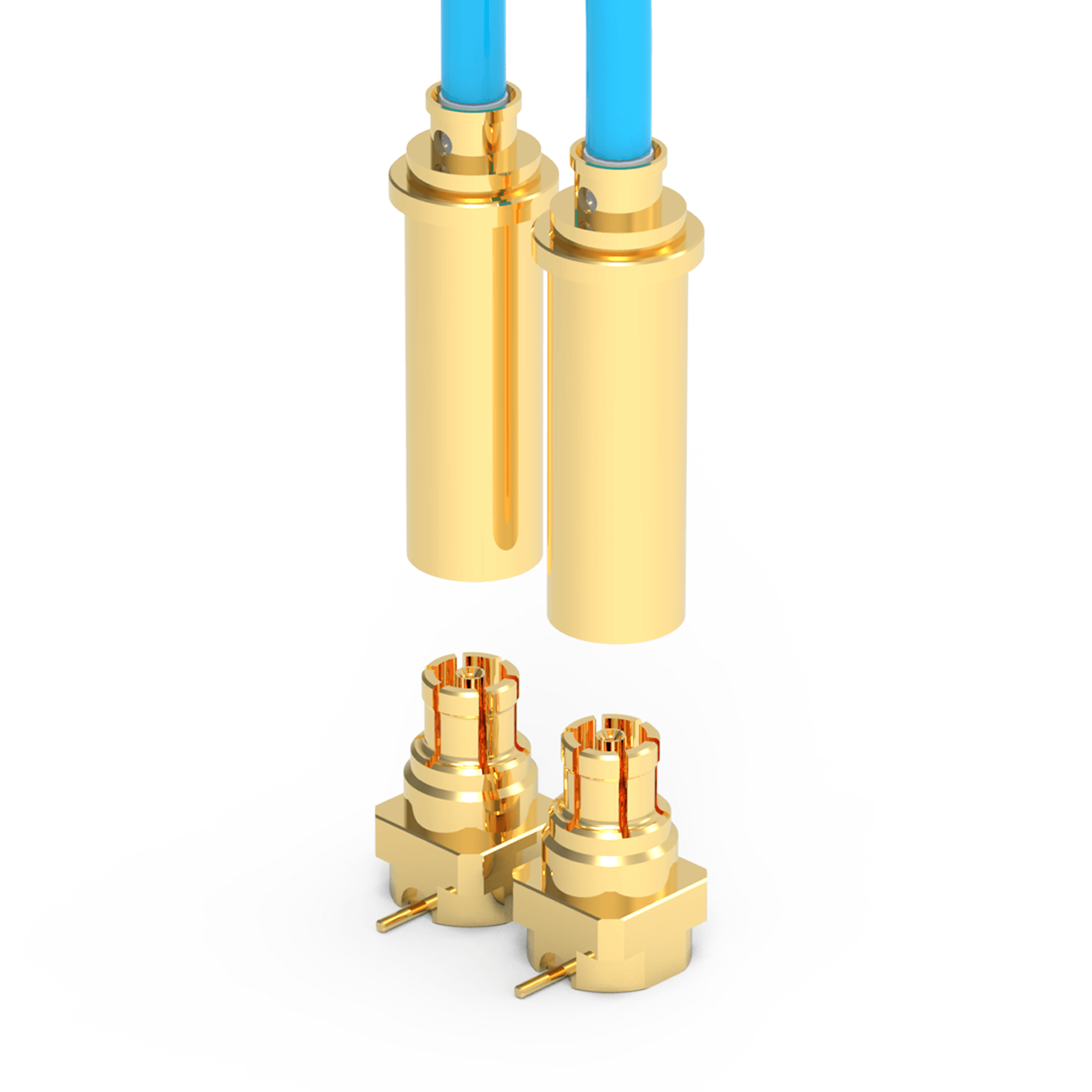

Cable to Vertical

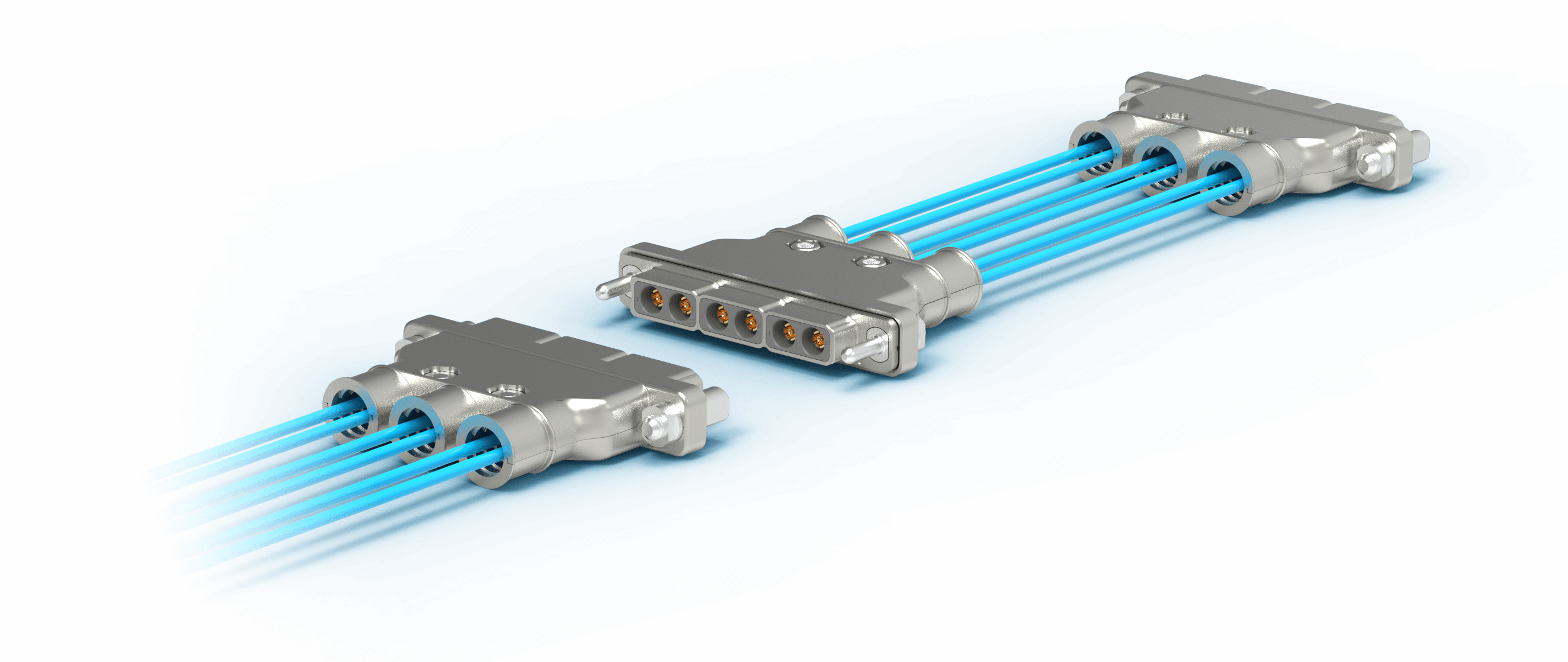

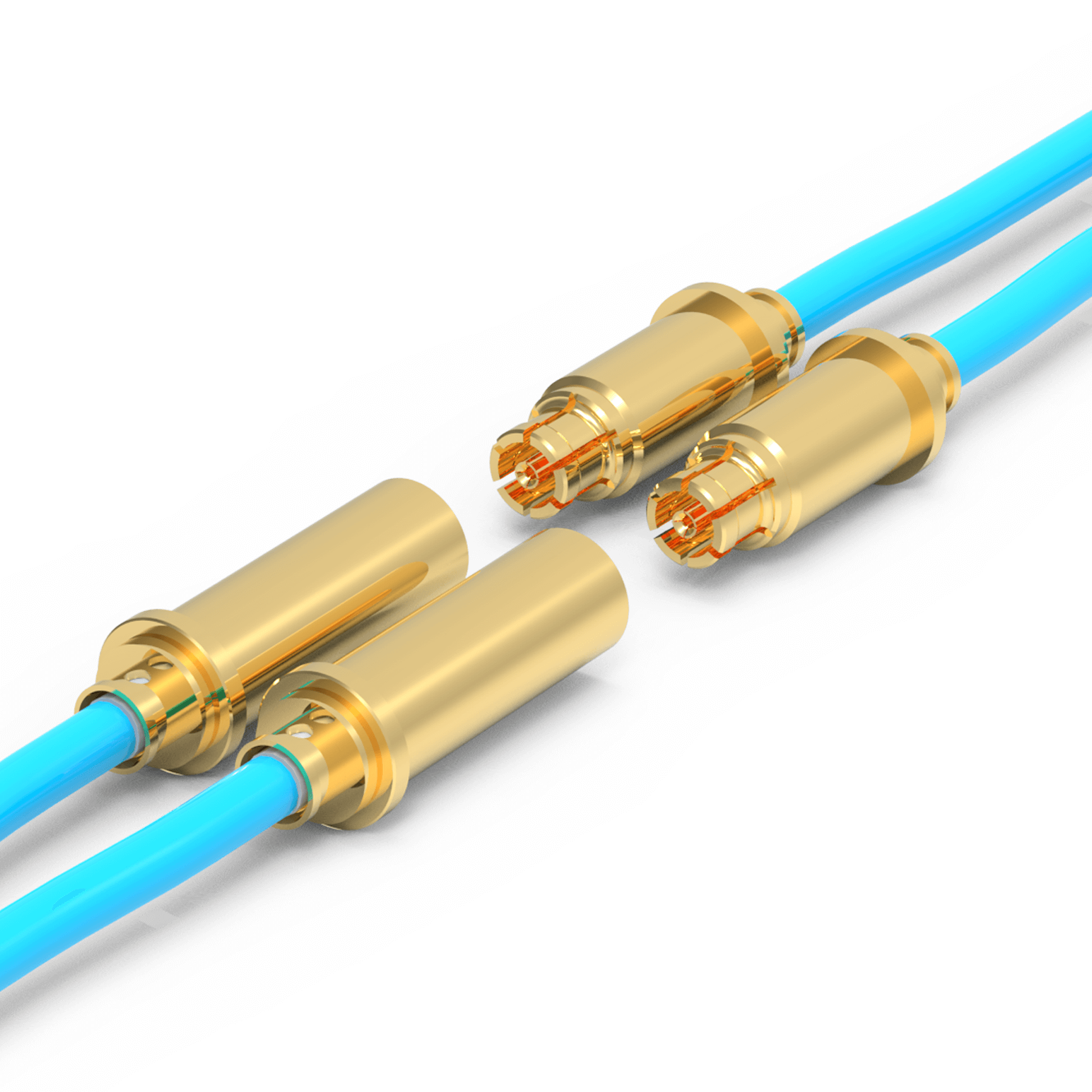

Cable to Cable

Turning Jack Screw / Fixed Jack Post, & Guide Pin / Guide Socket

Satellites

Head-Up Displays

Drones

Avionics

Communications

Radar Systems

Applications
