motor energy savings
sustainable
Motor Energy
Savings
RoHS 2
Compliant
Conformal
Coating
Recyclable
Packaging
Efficiency Increases
2% Efficiency Increase for Permanent Magnet Motors, whole speed range
6% Efficiency Increase for
Induction Motors at 20% Speed
Increased System Efficiency
Decreased Energy Cost
Reduced CO Emissions
•
•
•
•
•
2
RoHS 2 COMPLIANT
Rest assured that Yaskawa complies with strict environmental standards relative to use of hazardous substances.
Products are certified to the RoHS 2 Directive (2011/65/EU), which permits very small levels of lead, mercury, cadmium and others substances.
Zero Tolerance
CONFORMAL COATING
HV600 drives include printed circuit boards with a conformal coating that is tested and certified by an IEC standard.
This means you can be assured of protection against both harmful chemical and solid substances.
Conformal Coated PCBs
Here is what is revealed when an HV600 box is opened. We’ve done a lot to enhance the customer experience when they open that box, including eliminating all non-recyclable foam. HV600 uses molded pulp to protect the drive during shipment, something that can go directly to the recycle bin instead of the landfill.
Environmentally Friendly
MAIN
MENU
Motor Energy
Savings
RoHS 2
Compliant
Conformal
Coating
Recyclable
Packaging
Motor Energy
Savings
RoHS 2
Compliant
Conformal
Coating
Recyclable
Packaging
main
menu
Easy
Easy
Flexible
Flexible
Sustainable
Sustainable
Navigation:
X
Yaskawa America, Inc.
yaskawa.com
1-800-YASKAWA
RECYCLABLE PACKAGING
FLEXIBLE
Product
Range
Network Compatibility
Motor
Control
IP20
UL Type 1
Standalone Drives
IP55
UL Type 12
IP20
Protected Chassis
UL Type 1
Narrow Bypass
UL Type 1
Narrow Configured
Narrow Packages
UL Type 1, 12, or 3R Enclosed Bypass
UL Type 1, 12, or 3R Enclosed Configured
Enclosed Packages
Wide Range of Products
Click below
for more
HV600 DRIVES for fan and pump applications
The HV600 drive features a completely redesigned HOA keypad with tactile buttons.
A USB connector resides under the keypad for connecting a PC or mobile device.
All of our new series drives have an LED status ring for clear indication of drive status, even from a distance.
IP20/UL Type 1 Drives
HOA
Keypad
USB Connector
(Under Keypad)
LED
Status Ring
Network
Status LEDs
Drive
Series
Ratings
Label
IP20
Protected Chassis
IP55
UL Type 12
IP20
UL Type 1
IP20
UL Type 1
IP55
UL Type 12
IP20
Protected Chassis
The new IP55 drive carries all the same features as the IP20 drive.
However, UL Type 12 models achieve their rating by having no side vents and by having that hinged door with a clear, flexible membrane over the keypad.
The door is latched and sealed when closed to prevent dust ingress to maintain the rating – all while enabling programming and operation with the door closed!
IP55/UL Type 12 Drives
HV600 DRIVES for fan and pump applications
Keypad cover with easy
access door
Keys accessible while door
is closed
HV600 DRIVES for fan and pump applications
For larger HV600 drive models, we use frames that are IP20/Protected Chassis.
These are IP20 finger-safe, hence the term Protected Chassis. And, these can be converted to UL Type 1 with the addition of a simple kit.
IP20/Protected Chassis
UL Type 1
Narrow Configured
UL Type 1
Narrow Bypass
UL Type 1
Narrow Configured
UL Type 1
Narrow Bypass
UL Type 1, 12, or 3R Enclosed Configured
UL Type 1, 12, or 3R Enclosed Bypass
UL Type 1, 12, or 3R Enclosed Configured
UL Type 1, 12, or 3R Enclosed Bypass
NETWORK COMPATiBILITY
MOTOR CONTROL
MAIN
MENU
The HV600 is available in a new variety of packages assembled in our UL508A-certified manufacturing facility in Oak Creek, Wisconsin.
These packages mount the drive above the enclosure the houses other components.
The narrow design is well-received in HVAC applications where wall space is usually at a premium in mechanical rooms where these units are typically mounted.
The bypass control is on a circuit board mounted inside the lower enclosure, so the keypad is mounted there with an access opening in the door.
UL Type 1 Narrow Bypass
HV600 DRIVES for fan and pump applications
The Narrow Configured package is also well-received in HVAC applications where wall space is usually at a premium.
In the configured arrangement, the drive is still in control and retains its keypad mounting. The lower enclosure houses components and options available to meet a variety of customer needs.
UL Type 1 Narrow Configured
HV600 DRIVES for fan and pump applications
We’ve expanded our completely enclosed packages with UL Type 1, 12, and 3R ratings
to meet a variety of protection requirements. The enclosed bypass packages are now available in not only 208, and 480 Volt designs, but also models specifically designed for 240 Volt applications.
• Drive and components fully enclosed
• UL Type 1, 12, or 3R
• 208 V 0.5 to 100 HP
• 240 V 0.5 to 100 HP
• 480 V 0.75 to 250 HP
Enclosed Bypass
HV600 DRIVES for fan and pump applications
Like the enclosed bypass, the enclosed configured comes in a choice of all three UL type enclosures, all three voltage designs, and the full range of HV600 horsepowers.
• Drive and components fully enclosed
• UL Type 1, 12, or 3R
• 208 V 0.5 to 100 HP
• 240 V 0.5 to 100 HP
• 480 V 0.75 to 250 HP
Enclosed Configured
HV600 DRIVES for fan and pump applications
HV600 drives come with the most popular building automation networks built in:
BACnet, Johnson Controls Metasys, Siemens APOGEE, and Modbus.
LonWorks and EtherNet/IP networks are supported with an easy to install option card.
Additionally, they conform to a variety
of industry standards from various
governing bodies.
Communication Options
Built-in Networks
Supported with Option Card

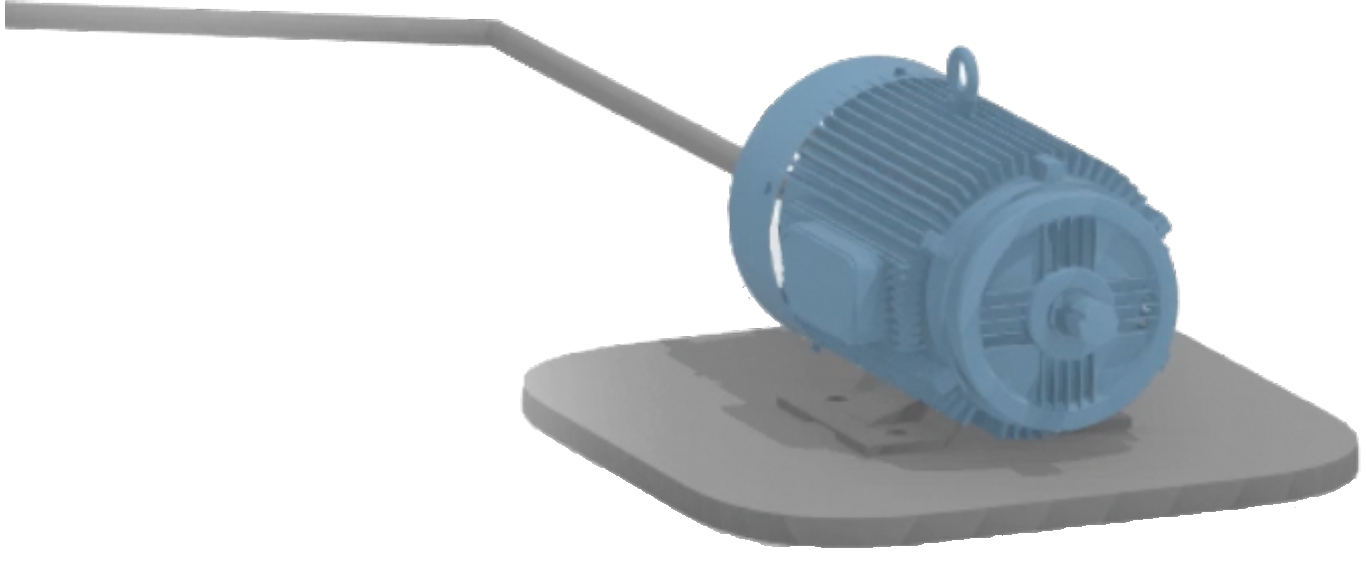

Control for both induction and
permanent magnet motors
Easy and accurate autotuning
provides optimized performance
for each connected motor
Optimized control avoids tripping
even with aggressive settings
Impressive PM open loop vector control
Compatible with
multiple motor types
•
•
•
•
Induction
Motors
Interior Permanent Magnet Motors
Surface Permanent Magnet Motors
Product
Range
Network
Compatibility
Motor
Control
Product
Range
Network Compatibility
Motor
Control
main menu
Easy
Easy
Flexible
Flexible
Sustainable
Sustainable
Navigation:
X
Yaskawa America, Inc.
yaskawa.com
1-800-YASKAWA

HOA
Keypad
Status
Ring
Installation
Programming
Easy
MAIN
MENU
Like all Yaskawa’s new generation VFDs, the HV600 features an LED status ring in a prominent location on the front of the drive, giving clear indication of drive status, even from a distance.
Lighting your way
RUN (GREEN)
Drive is running
ALM/ERR (RED)
Faulted/Alarmed
READY (BLUE)
Drive is ready to run
Quick
Access Keys
Keypad
Layout
Redesigned
Keypad
Click Below
for More
Custom
Monitors
Graphs / Trending
HAND OFF AUTO KEYPAD
The layout of the keypad is clear and straightforward. The LEDs at the top indicate drive status and the keys below the screen are color-coded and clearly labeled.
Keypad Layout
Auto
LED
Function
Keys
Direction
AUTO
Enter
Alarm
LED
HAND
OFF
Quick Access Keys
The white left arrow, right arrow, and up and down arrow keys provide quick, one-click access to the most commonly used screens of information, which are Monitor, Menu, and custom monitors.
•
•
•
for monitor menu
for menu screen
for custom monitors
Custom Monitors
With the HV600 comes the ability to choose which monitors are shown on the home screen. Choose up to 12 monitors to show in any order, to match what’s most important for the application.
The defaults from the factory are frequency reference, output frequency, and output current.
Graphs/Trending
For a more visual indication of values, three new choices are available: Bar graph, analog gauge, and trend plot.
Each provides a graphical means to view one or more monitor values with simple, straighforward set up.
Two lines are dedicated to each of the three parameters shown at once on the screen.
For each parameter,
the parameter name, number, value, and units are shown, as well as the default value shown in parentheses.
Parameter Details
Setting details all on one screen
Up to 32 characters
DRIVE INSTALLATION
LED STATUS RING
Wiring
Retrofitting
Mounting
Euro-Style
Screw Terminals
Simple
Installation
click below
for more
The HV600 is the easiest to use HVAC drive in the market. It all starts with our simple installation. Our goal was to make it so simple and effortless that new engineers, contractors, and consultants could get a drive installed with minimal effort.
Simple Installation
Tactile buttons
Built-in real-time clock
Bigger,
brighter
screen
The screen is bigger, brighter, and has more characters to convey more information clearly.
The keys are clearly marked and feature full-travel buttons that provide tactile feedback when pushed.
A real-time clock with battery and a Micro SD slot are standard with every keypad. The slot will accept a Micro SD card up to 32 gigabytes for use in data logging.
redesigned keypad
HOA
Keypad
Status
Ring
Installation
Programming
HOA
Keypad
Status
Ring
Installation
Programming
main menu
Easy
Easy
Flexible
Flexible
Sustainable
Sustainable
Navigation:
Parameter
Details
Setup
Procedure
Smaller model drives feature
Euro-style screw terminals for
both control and power wiring.
These are both finger-safe
and accept either bare wire or ferrule connections.
EURO-STYLE
SCREW TERMINALS
For new installations, keyholes make it possible to drill, tap, and mount screws prior to mounting the drive.
Then, the drive can be slipped over the screws before tightening, thus turning what in many cases was a two-man job into a task easily accomplished by one.
To facilitate ease of mounting, we’ve included a full-size mounting template that can be taped to the HV600’s mounting location to mark for mounting holes without the need for any measuring.
Mounting
A second set of holes match the mounting hole locations on same-size Z1000 drives. This is just one of the many things we’ve done to make all those Z1000 to HV600 retrofits quick and easy.
Retrofitting
Inside the cover is model-specific information for wiring, along with a convenient one-to-one scale for proper strip length for control, ground, and power wiring.
Wiring
In addition to a detailed manual within the box, we’ve included a Quick Setup Procedure that provides easy-to-follow, pictorial, step-by-step instructions on how to quickly take the drive from out-of-the-box to operational quickly and easily.
Setup Procedure
DriveWorksEZ
DriveWizard® Mobile
DriveWizard® HVAC
Software Utilities
click below
for more
DRIVE PROGRAMMING
Yaskawa offers three different software utilities for the HV600.
Each tool in our software portfolio has a purpose to make the contractor, integrator, or consultant's job easier.
Software utilities
Our PC-based software has
been updated with a fresh new
look and also with the new
features that come with
the HV600.
In addition to its parameter
management and troubleshooting
capabilities, the cable connection
from the PC to the drive provides
the only power required to program
and even upgrade the firmware in the HV600.
We’ve also added support for the drive’s the new data logging and trace recorder features.
dRIVEwIZARD® hvac
DriveWizard Mobile is our new companion to DriveWizard HVAC for mobile devices like smart phones and tablets.
The DriveWizard Mobile app turns your Android smartphone or tablet into an interface for your HV600 drive. All information for parameter setup and troubleshooting are in your pocket – anytime, anywhere.
It’s also possible with DriveWizard Mobile to do parameter backups with or without main power applied to the drive.
dRIVEwIZARD® Mobile
DriveWorksEZ has long been a feature of Yaskawa’s industrial drives.
We’ve now added its functionality to our HVAC drives, allowing users to create custom logic and mathematic functionality inside the HV600.
Simply create application programs by arranging function block icons in a visual flow chart. Total drive and machine control are only a few mouse clicks away.
DRiveworksez®
Setup
Procedure
Wiring
Retrofitting
Mounting
Euro-Style
Screw Terminals
Simple
Installation
Setup
Procedure
Wiring
Retrofitting
Mounting
Euro-Style
Screw Terminals
Simple
Installation
Parameter
Details
Graphs / Trending
Custom
Monitors
Quick
Access Keys
Keypad
Layout
Redesigned
Keypad
Redesigned
Keypad
Keypad
Layout
Quick
Access Keys
Custom
Monitors
Graphs / Trending
Parameter
Details
DriveWorksEZ
DriveWizard® Mobile
DriveWizard® HVAC
Software Utilities
Software Utilities
DriveWizard® HVAC
DriveWizard® Mobile
DriveWorksEZ
