PART #
300-81-010
300-81-011
300-81-012
DESCRIPTION
6-HOLE SNAKE PLATE, MINI
8-HOLE SNAKE PLATE, MINI
10-HOLE SNAKE PLATE, MINI
DESCRIPTION
2-HOLE STRAIGHT PLATE
4-HOLE STRAIGHT PLATE
5-HOLE STRAIGHT PLATE
6-HOLE STRAIGHT PLATE
8-HOLE STRAIGHT PLATE
10-HOLE STRAIGHT PLATE
3-HOLE STRAIGHT PLATE, MINI
4-HOLE STRAIGHT PLATE, MINI
5-HOLE STRAIGHT PLATE, MINI
6-HOLE STRAIGHT PLATE, MINI
7-HOLE STRAIGHT PLATE, MINI
8-HOLE STRAIGHT PLATE, MINI
PART #
300-80-007
300-80-008
300-80-009
300-80-010
300-80-011
300-80-012
300-81-013
300-81-014
300-81-015
300-81-016
300-81-017
300-81-018
PART #
300-81-019
300-81-020
300-81-021
300-81-022
DESCRIPTION
5-HOLE SHORT CONDYLAR PLATE, MINI
5-HOLE LONG CONDYLAR PLATE, MINI
7-HOLE CONDYLAR PLATE, MINI
9-HOLE CONDYLAR PLATE, MINI
PART #
300-88-003
300-88-004
300-88-005
300-88-006
300-88-007
300-88-008
300-81-023
300-81-024
300-81-025
300-81-026
DESCRIPTION
SHORT 4-HOLE L-PLATE, LEFT
SHORT 4-HOLE L-PLATE, RIGHT
4-HOLE L-PLATE, LEFT
4-HOLE L-PLATE, RIGHT
5-HOLE L-PLATE, LEFT
5-HOLE L-PLATE, RIGHT
4-HOLE L-PLATE LEFT, MINI
4-HOLE L-PLATE RIGHT, MINI
6-HOLE L-PLATE LEFT, MINI
6-HOLE L-PLATE RIGHT, MINI
PART #
300-85-020
DESCRIPTION
CUBOID PLATE
PART #
300-85-021
DESCRIPTION
NAVICULAR PLATE
PART #
300-85-019
DESCRIPTION
TALAR NECK PLATE
DESCRIPTION
5TH MET PLATE, LONG, LEFT
5TH MET PLATE, LONG, RIGHT
5TH MET PLATE, SHORT, LEFT
5TH MET PLATE, SHORT, RIGHT
PART #
300-84-011
300-84-012
300-84-013
300-84-014
PART #
300-87-011
300-84-012
300-84-013
300-84-014
DESCRIPTION
MEDIAL COLUMN PLATE, SHORT, LEFT
MEDIAL COLUMN PLATE, SHORT, RIGHT
MEDIAL COLUMN PLATE, LONG, LEFT
MEDIAL COLUMN PLATE, LONG, RIGHT
PART #
300-82-015
300-82-016
300-82-017
300-82-018
300-82-019
300-82-020
300-82-021
300-82-022
300-82-023
300-82-024
300-82-025
300-82-026
DESCRIPTION
STANDARD MTP PLATE, L, 5°
STANDARD MTP PLATE, R, 5°
STANDARD MTP PLATE, L, 0°
STANDARD MTP PLATE, R, 0°
LONG MTP PLATE, L, 5°
LONG MTP PLATE, R, 5°
LONG MTP PLATE, L, 0°
LONG MTP PLATE, R, 5°
REVISION MTP PLATE, L, 5°
REVISION MTP PLATE, R, 5°
REVISION MTP PLATE, L, 0°
REVISION MTP PLATE, R, 0°
DESCRIPTION
PETITE MTP PLATE, L, 5°
PETITE MTP PLATE, R, 5°
PETITE MTP PLATE, L, 0°
PETITE MTP PLATE, R, 0°
PART #
300-82-011
300-82-012
300-82-013
300-82-014
PART #
300-83-007
300-83-008
300-83-009
300-83-010
300-83-011
300-83-012
DESCRIPTION
PETITE LAPIDUS PLATE, LEFT
PETITE LAPIDUS PLATE, RIGHT
SHORT LAPIDUS PLATE, LEFT
PETITE LAPIDUS PLATE, RIGHT
LONG LAPIDUS PLATE, LEFT
LONG LAPIDUS PLATE, RIGHT
PART #
300-89-001
300-89-002
300-89-003
300-89-004
300-89-005
DESCRIPTION
4-HOLE Y PLATE
5-HOLE Y PLATE
7-HOLE Y PLATE
9-HOLE Y PLATE
12-HOLE Y PLATE
PART #
300-88-009
300-88-010
DESCRIPTION
STANDARD X-PLATE
LARGE X-PLATE
PART #
300-85-009
300-85-010
300-85-011
300-85-012
300-85-013
300-85-014
DESCRIPTION
STANDARD LISFRANC, 20°, PLATE
STANDARD LISFRANC, 10°, PLATE
STANDARD LISFRANC, 0°, PLATE
LONG LISFRANC, 20°, PLATE
LONG LISFRANC, 10°, PLATE
LONG LISFRANC, 0°, PLATE
Click on any of the plates on the feet below to get more information.
6 Dedicated Lapidus Plates in Left & Right Options.
PETITE
SHORT
LONG
PETITE
STANDARD
LONG
12 MTP Plate Offerings in Left & Right Options
With and Without Dorsiflexion.
REVISION
6 Lisfranc Plate Offerings in Standard and Long Options
Plates are Offered with 0, 10, & 20 Degrees of Plantarflexion.
The Arsenal Foot™ Mini Frag Caddy Contains 4 Options of Condylar Plates Ranging From 5-Hole to 9-Hole Options.
These Mini Frag Plates Accept the 2.2mm Arsenal Screws.
Straight Plates are Available in the Utility Plate Caddy and the Mini Frag Caddy.
These are Offered in a Wide Range of Hole Options:
2-Hole to 10-Hole for Plates Accepting the 2.7 & 3.5mm Arsenal Screws
2-Hole to 8-Hole Options for Plates Accepting the 2.2mm Arsenal Screws
The Long Medial Column Plate Allows for Inclusion of the Talus.
Medial Column Plate Offerings are Short and Long
in Left and Right Options.
NAVICULAR PLATE
CUBOID PLATE
The Arsenal Foot™ Mini Frag Caddy Contains 2 Plates for
Navicular or Cuboid Fractures.
These Plates Accept the 2.2mm Arsenal Screws.
5 Y-Plate Options are Available in the Arsenal Foot™ Utility Plate Caddy.
Y-Plates are Available in 4-Hole to 12-Hole Options.
2 X-Plates, a Standard and Large, are Available in
the Arsenal Foot™ Utility Plate Caddy.

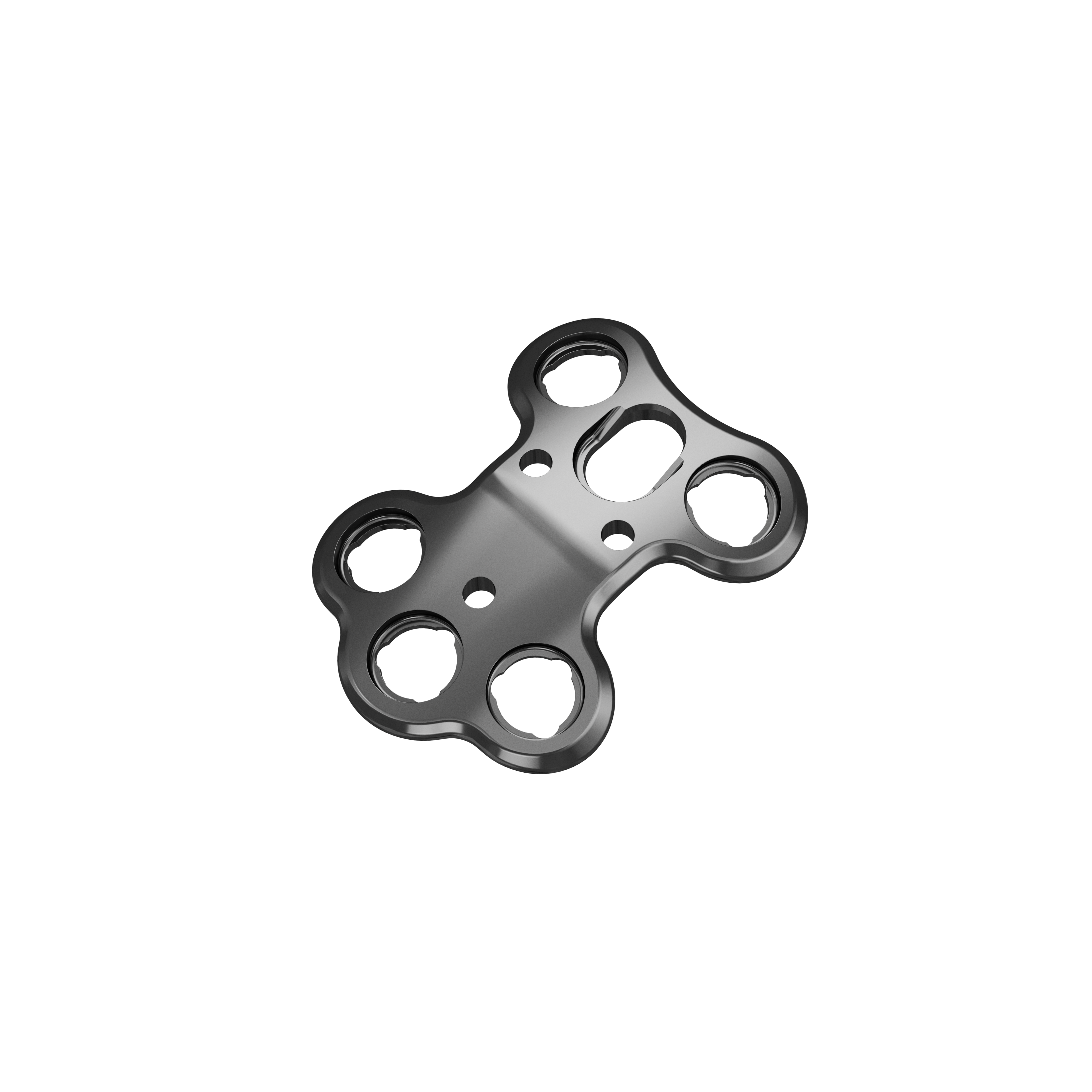

2 TN Fusion Plates in Short and Long Options
2 NC Fusion Plates in Left and Right Options
The Talar Neck Plate is Part of the Arsenal Foot™ Midfoot Caddy.
The Midfoot Caddy also Includes:
L-Plates are Offered in Varying Hole Options That are Left and Right Specific.
6 L-Plate Options are Available in the Utility Plate Caddy,
Accepting the 2.7 & 3.5mm Arsenal Screws.
4 L-Plate Options are Available in the Mini Frag Caddy,
Accepting the 2.2mm Arsenal Screws.
3 Mini Snake Plate Offerings in 6, 8, and 10-Hole Options.
These Plates Accept the 2.2mm Arsenal Screws.
5th Met Hook Plate Offerings are Short and Long in Left and Right Options.
These are compatible with Tiger 3.0 or 4.0 mm Headed Screws for Interfrag Fixation.
Dedicated Instrumentation is Included in the Caddy for a Simplified Technique.
Talar Neck Plate
