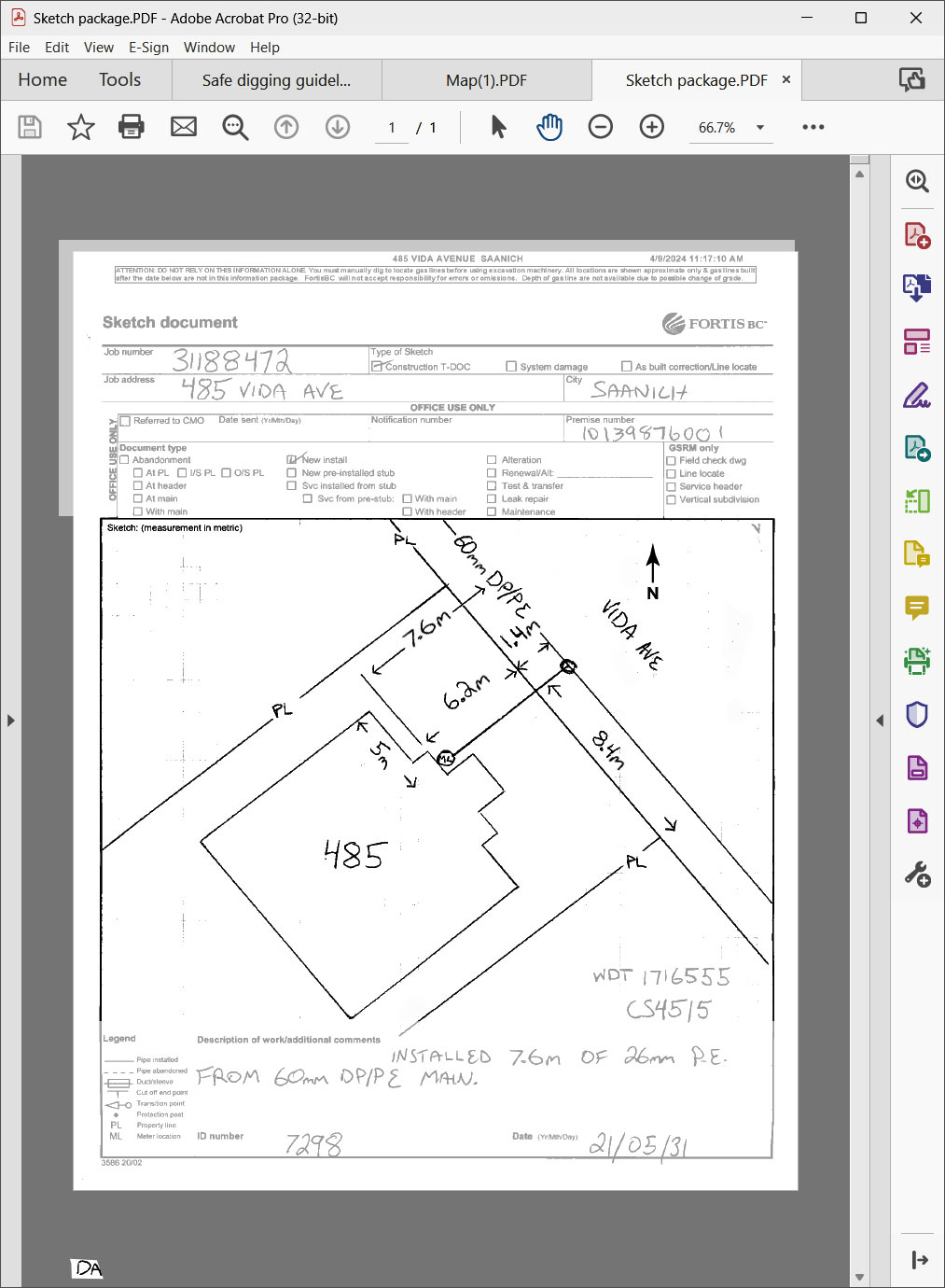

Note: a service record is a scan of the original gas service line installation sketch. Legibility and complexity will vary due to the age and hand-drawn nature of most of these documents (some may be in another format rather than hand-drawn).
South property line
Highlighted gas main and service line
South Property Line
Gas main line
Gas service line
South Property Line
Gas main line
Gas service line
Play animated guide

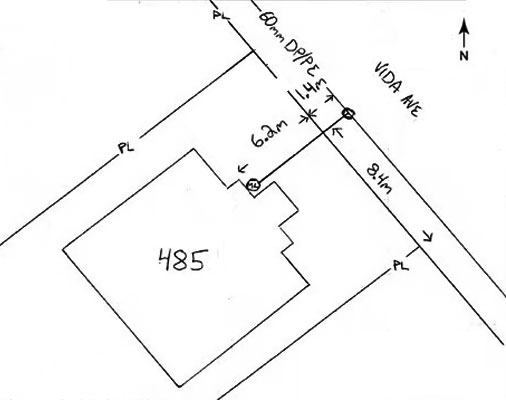

In this sketch, the service line is 8.4m from the south property line (PL). To locate the gas line in this example, you would need to measure this distance and mark the location on the site.
Highlight the line
Property line
Gas main line
Street address
Gas connected
Pipeline location map
Sketch
Pipeline location map
Sketch
Play animated guide

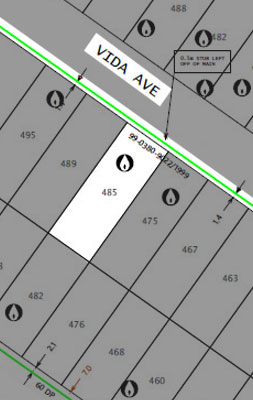

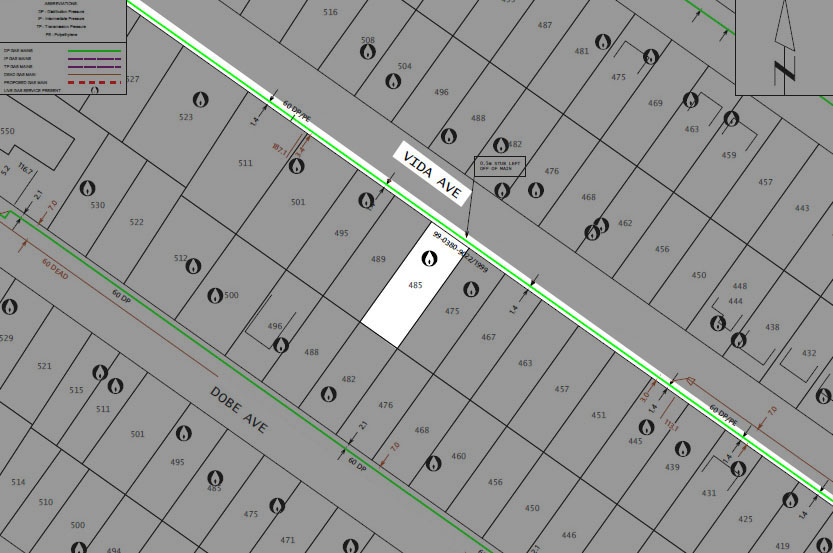

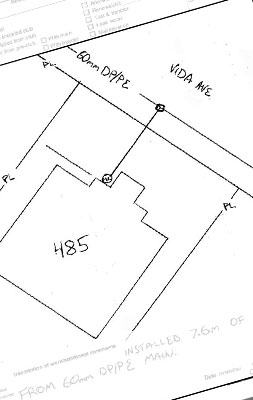

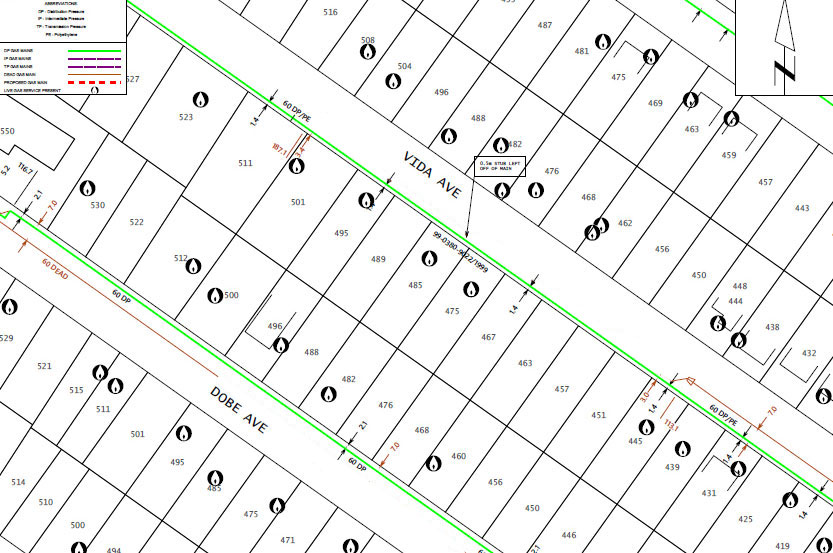

Take the sketch and cross-reference it against the Pipeline Location Map(s) to help situate the sketch to the surrounding area.
Cross-reference
Gas main line
Gas service line
Meter location (Markings may vary)
Gas main line
Gas service line
Meter location
Gas main line
Meter location
Play animated guide

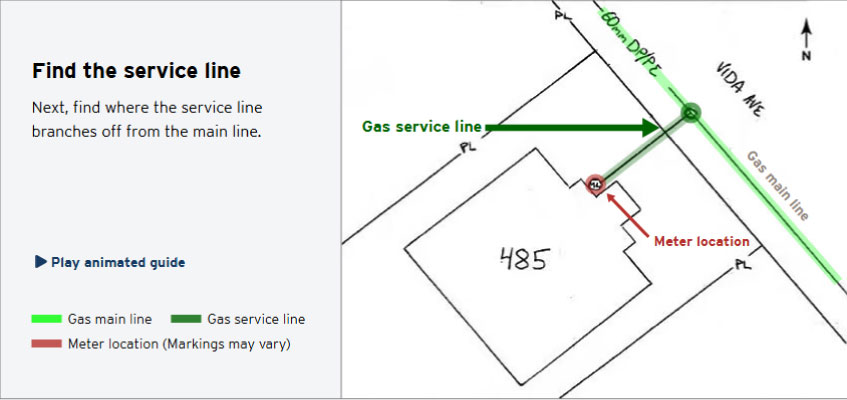

Next, find where the service line branches off from the main line.
Find the service line
Gas main line
Property line
Property line
Property line
Play animated guide

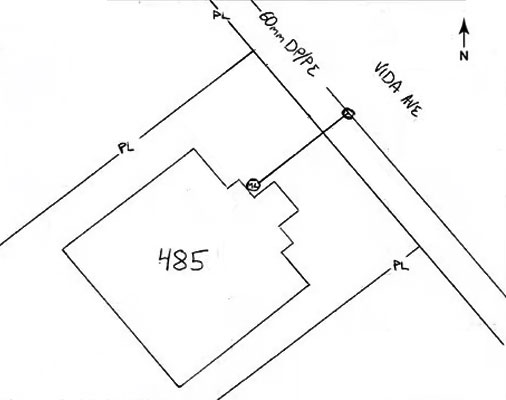

On the sketch, the gas main line will most often be marked DP (Distribution Pressure). You are likely to find the gas main line just outside of property lines, along streets or on roadways.
Find the main line
Structure
Property line
Gas line
Street address
Structure
Property line
Street
address
Gas line
Structure
Property line
Street
address
Gas line
Play animated guide

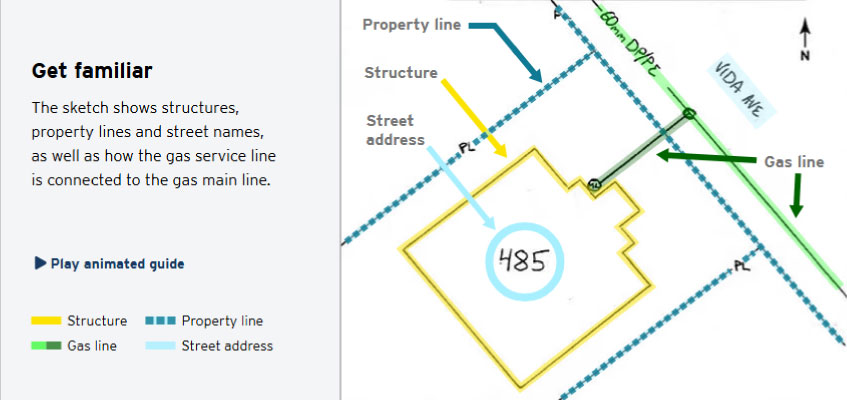

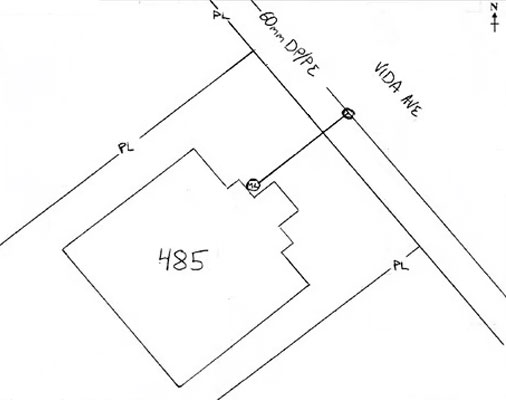

The sketch shows structures, property lines and street names, as well as how the gas service line is connected to the gas main line.
Get familiar
Step 5
Step 4
Step 2
Step 1
Step 5
Step 4
Step 3
Step 2
Step 1
Play animated guide
Prefer a visual walkthrough? The animated guide shows the same info - just played one after another with highlights to guide you through.
Prev
Finish
After that, you can click around to revisit any step.
Next
Prev
For the best experience, go through the steps in order the first time.
Next
Quick tour: how to use the guide
Gas main line
DP = Distribution Pressure
PE = Polyethylene (Pipe material)
DP = Distribution Pressure
PE = Polyethylene (Pipe material)
Gas main line
Note: a service record is a scan of the original gas service line installation sketch. Legibility and complexity will vary due to the age and hand-drawn nature of most of these documents (some may be in another format rather than hand-drawn).
Next
Step 1
Step 5
Prev
South property line
Highlighted gas main and service line
South Property Line
Gas service line
Gas main line
South Property Line
Gas service line
Gas main line
Play animated guide
Play animated guide
In this sketch, the service line is 8.4m from the south property line (PL). To locate the gas line in this example, you would need to measure this distance and mark the location on the site.
Highlight the line
Step 5 of 5
Gas main line
Gas connected
Property lines
Street address
Pipeline location map
Sketch
Pipeline location map
Sketch
Play animated guide
Play animated guide

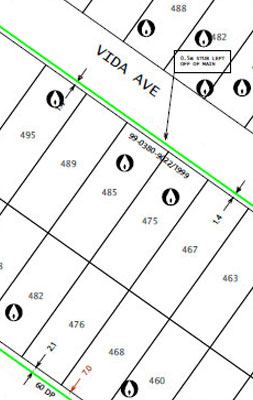

Take the sketch and cross-reference it against the Pipeline Location Map(s) to help situate the sketch to the surrounding area.
Cross-reference
Step 4 of 5
Meter location (Markings may vary)
Gas main line
Gas service line
Gas main line
Gas
service line
Meter location
Gas main line
Gas
service line
Meter location
Play animated guide
Play animated guide
Next, find where the service line branches off from the main line.
Find the service line
Step 3 of 5
Gas main line
Property line
Property line
DP = Distribution Pressure
PE = Polyethylene (Pipe material)
Gas main line
Property line
DP = Distribution Pressure
PE = Polyethylene (Pipe material)
Gas main line
Play animated guide
Play animated guide
On the sketch, the gas main line will most often marked DP (Distribution Pressure). You are likely to find the gas main line just outside of property lines, along streets or on roadways.
Find the main line
Step 2 of 5
Structure
Property lines
Gas line
Street address
Structure
Property line
Street address
Gas line
Structure
Property line
Street address
Gas line
Play animated guide
Play animated guide
The sketch shows structures, property lines and street names, as well as how the gas service line is connected to the gas main line.
Get familiar
Step 1 of 5
Gas service line
Step 3
Step 5
Step 4
Step 3
Step 2
Step 1
Finish
Prev
After that, you can click around to revisit any step.
Next
Prev
Prefer a visual walkthrough? The animated guide shows the same info - just played one after another with highlights to guide you through.
Play animated guide
For the best experience, go through the steps in order the first time.
Next
Quick tour: how to use the guide
