Same Space, More Power
Saf-D-Grid fits into the same small footprint as C13 as defined by IEC 60320.
Saf-D-Grid® Connector Series
Meet the interconnect solution engineered for the power demands of tomorrow. With support for up to 55A and 600VAC/DC, this connector family is built for both high-amperage and high-voltage data center environments.

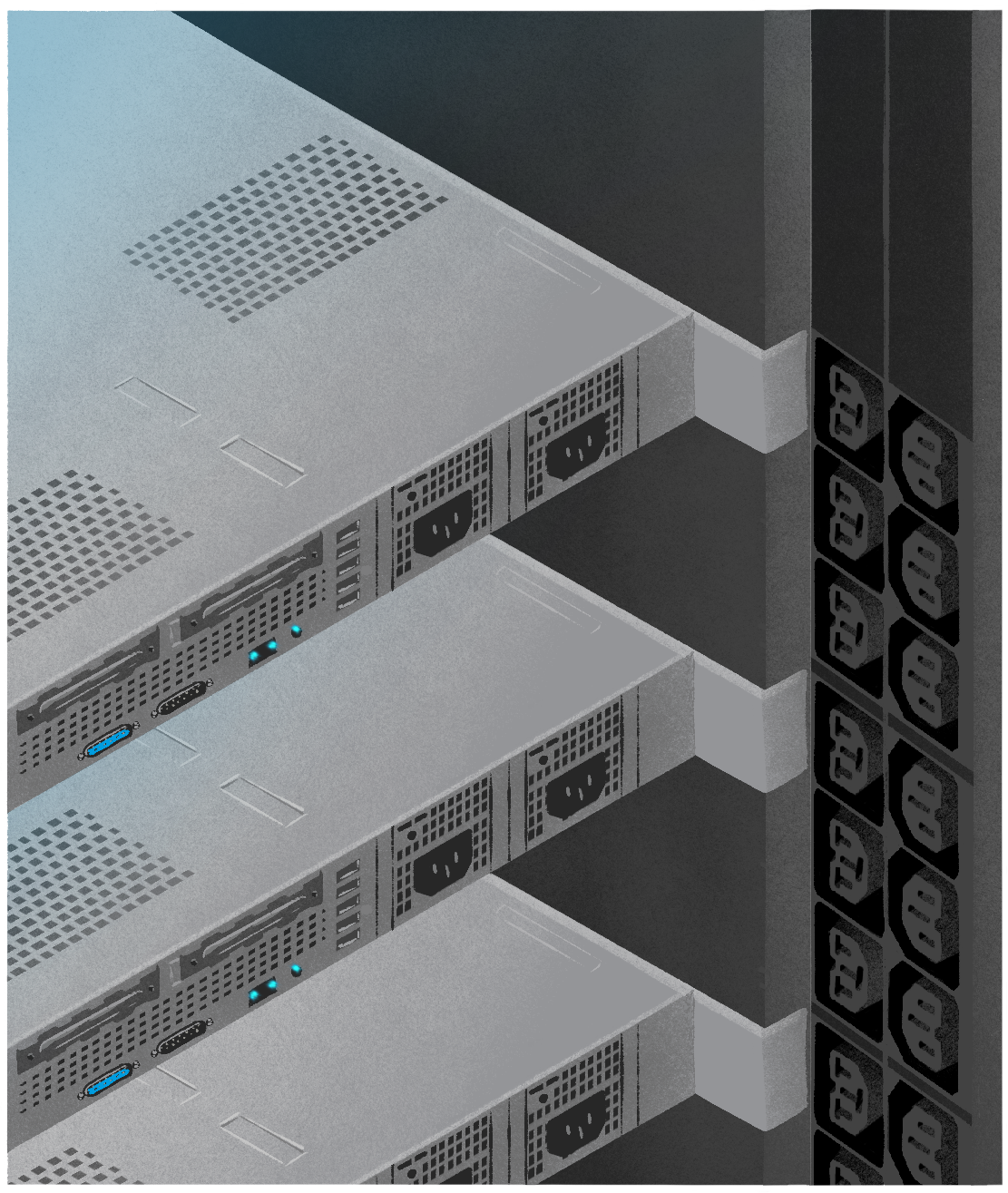

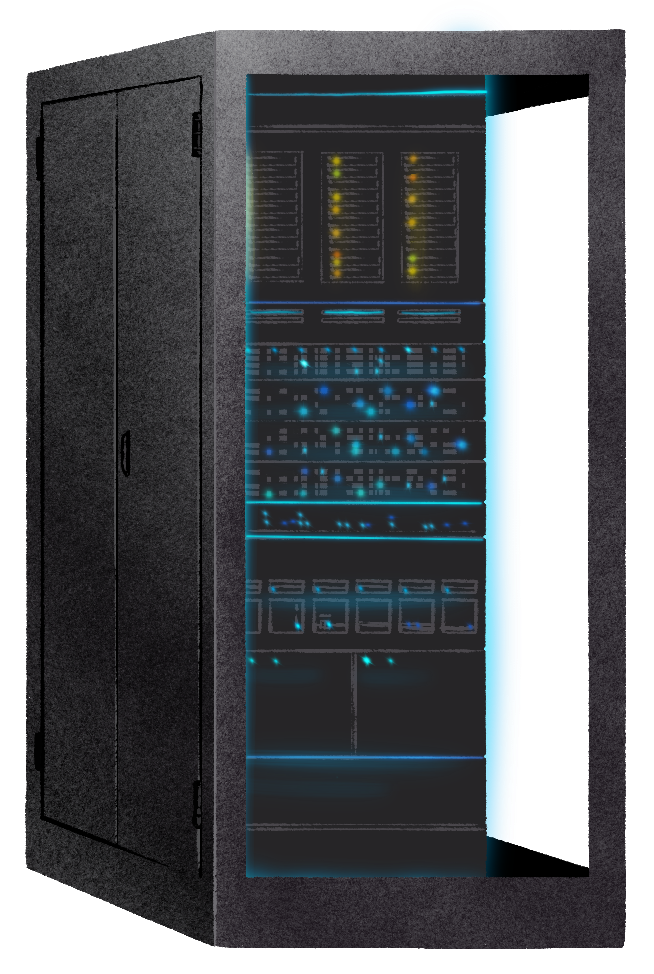

Open to see how Saf-D-Grid fits into your datacenter.
See how Saf-D-Grid fits into your datacenter

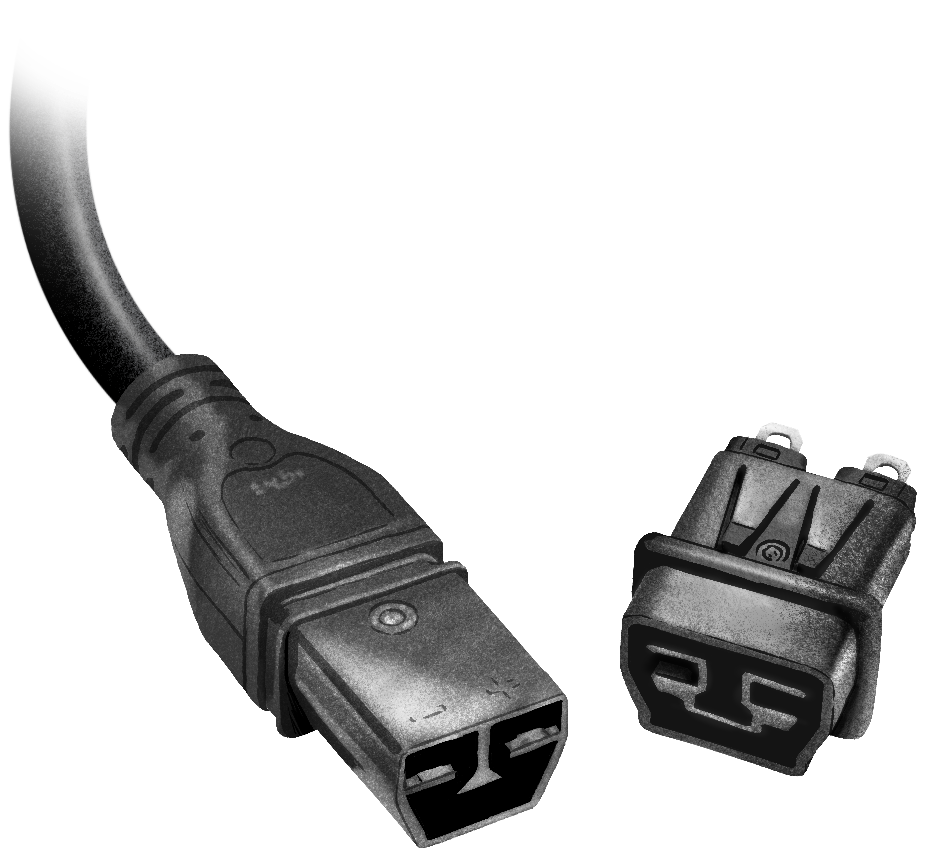

Integrated latch prevents accidental disconnects. Hot-plug rating, touch-safe plug/receptacle, and long grounding pin provide enhanced safety.
Connection Security
Same compact footprint as a standard IEC C13/C14 connector.
Space-saving solution for cost savings and design flexibility.
Space-Saving Design
Same small footprint as C13 as defined by IEC 60320
Compact Form Factor
Supports up to 277VAC and 380VDC. Customizable options for low clearance applications and loopback/dead short prevention keys.
Solution for Every Data Center
Perfect for hot-aisle environment with 105°C thermal rating.
Extra-long housing designed to contain arcs and enhance safety.
Durable Housing
Tap to explore the features
Original Saf-D-Grid Features
Saf-D-Grid offers 7.2X the power of a standard IEC C13/C14 connector.
UL-Rated for disconnect up to 400V and 30A.
Maximum Power Density
Explore additional Saf-D-Grid options to find the best connector for your specific needs
Replace IEC C13/C14 connectors with Saf-D-Grid to increase your power output without sacrificing space.

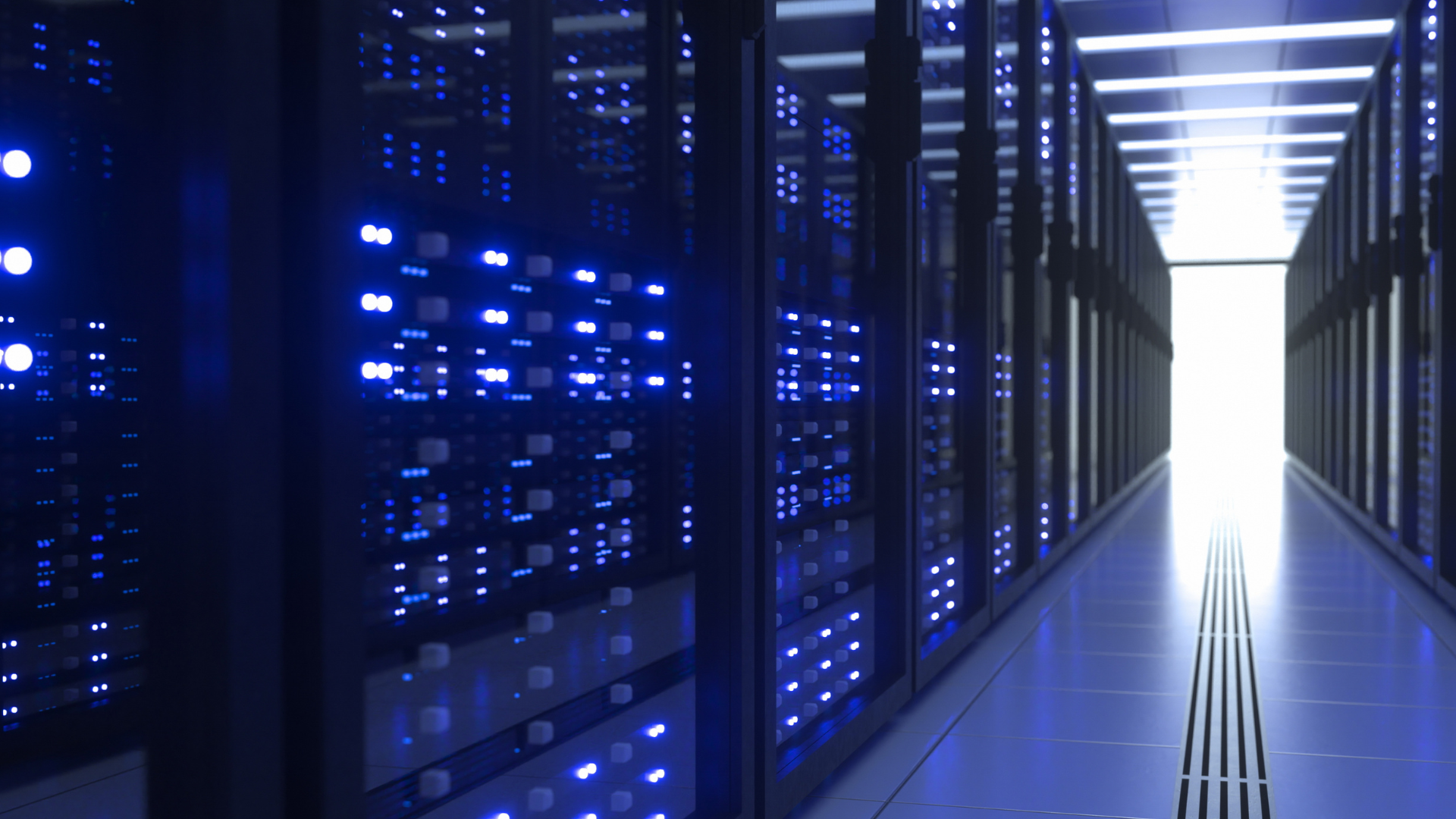

Saf-D-Grid delivers maximum power in minimal space. Power your data center's busways, uninterruptible power supplies, power distribution units, and power supply units with a compact connector built to handle impressive voltage and current. Whether you're working with AC or DC in higher power architectures, Saf-D-Grid keeps up with your data center's evolving demands.
Our Saf-D-Grid Options

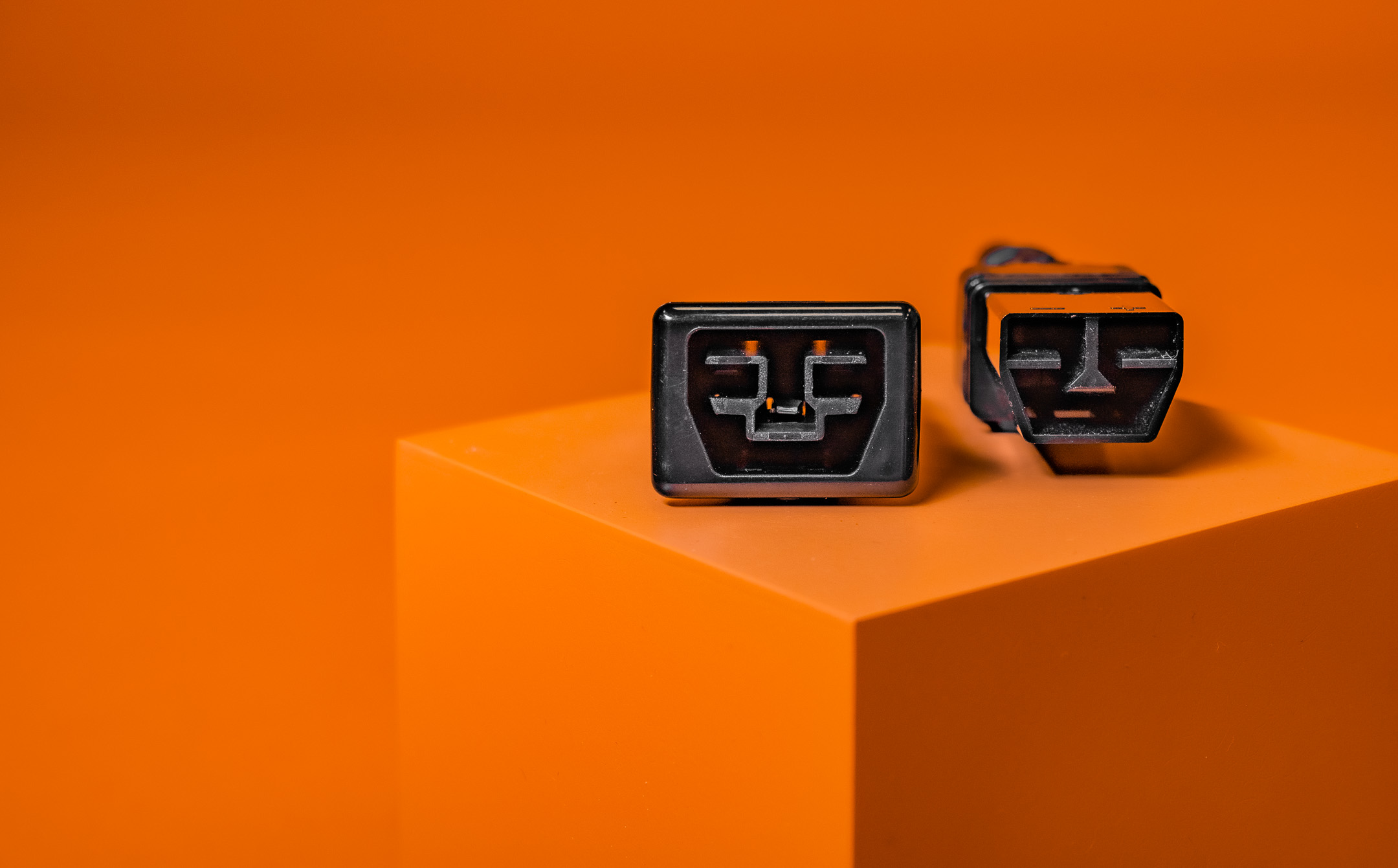

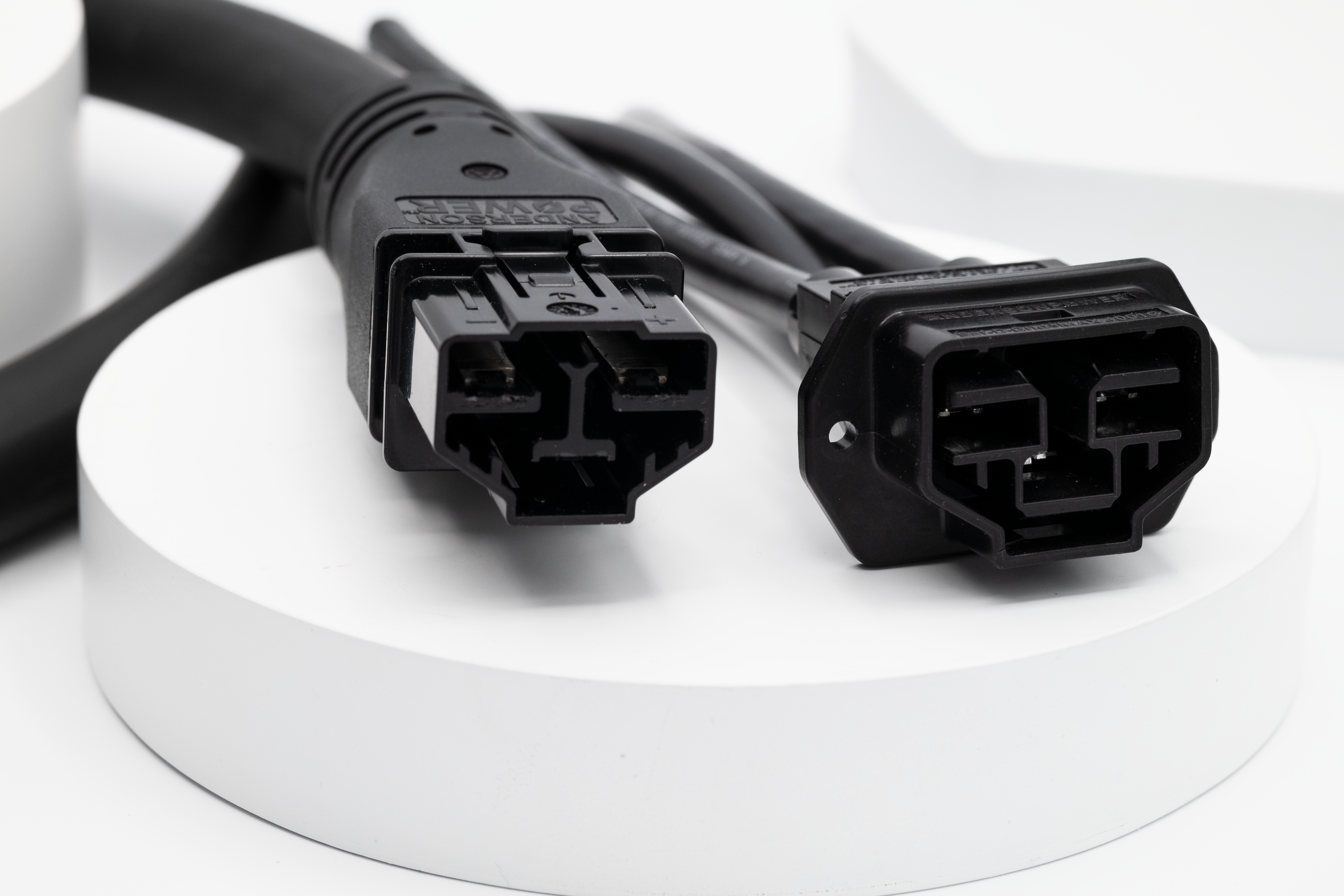

Whether you're working with AC or DC currents, Saf-D-Grid handles up to 30A and 400V — providing 7.2X the power of a standard C13/C14 connector within the same footprint. This connector delivers features including a high thermal rating, an integrated latch, hot-plug capability, ground contact, touch-safe and shock rating, and arcing protection. With proven performance in data centers across the world, you can't go wrong with our original Saf-D-Grid.
Saf-D-Grid
With a UL disconnect rating of up to 40A and 305V AC or DC, the Saf-D-Grid Max is perfect for high-power applications. Designed in a C19/C20 footprint, it's ideal for larger data centers looking to future-proof their power infrastructure.
Plus, it includes all the features of our original Saf-D-Grid with a high thermal rating, integrated latch, hot-plug capability, ground contact, touch-safe and shock rating, and arcing protection. If your data center demands more amperage, you just found your perfect fit.
Saf-D-Grid Max
The Saf-D-Grid Three Phase was designed specifically for three-phase PDU input/output and PSU input power architectures. It's rated for up to 20A, 480V line-to-line, and 277VAC line-to-neutral, supplying 16.63kW of three-phase power — or 6.65X the power of a standard C13/C14 — within the same compact footprint. If your three-phase data center needs higher voltage support while reducing space and cable costs, this is the solution you've been waiting for.
Saf-D-Grid 3-Phase
Saf-D-Grid
Saf-D-Grid Max
Saf-D-Grid 3-Phase
Tap a tile to explore Saf-D-Grid options.
