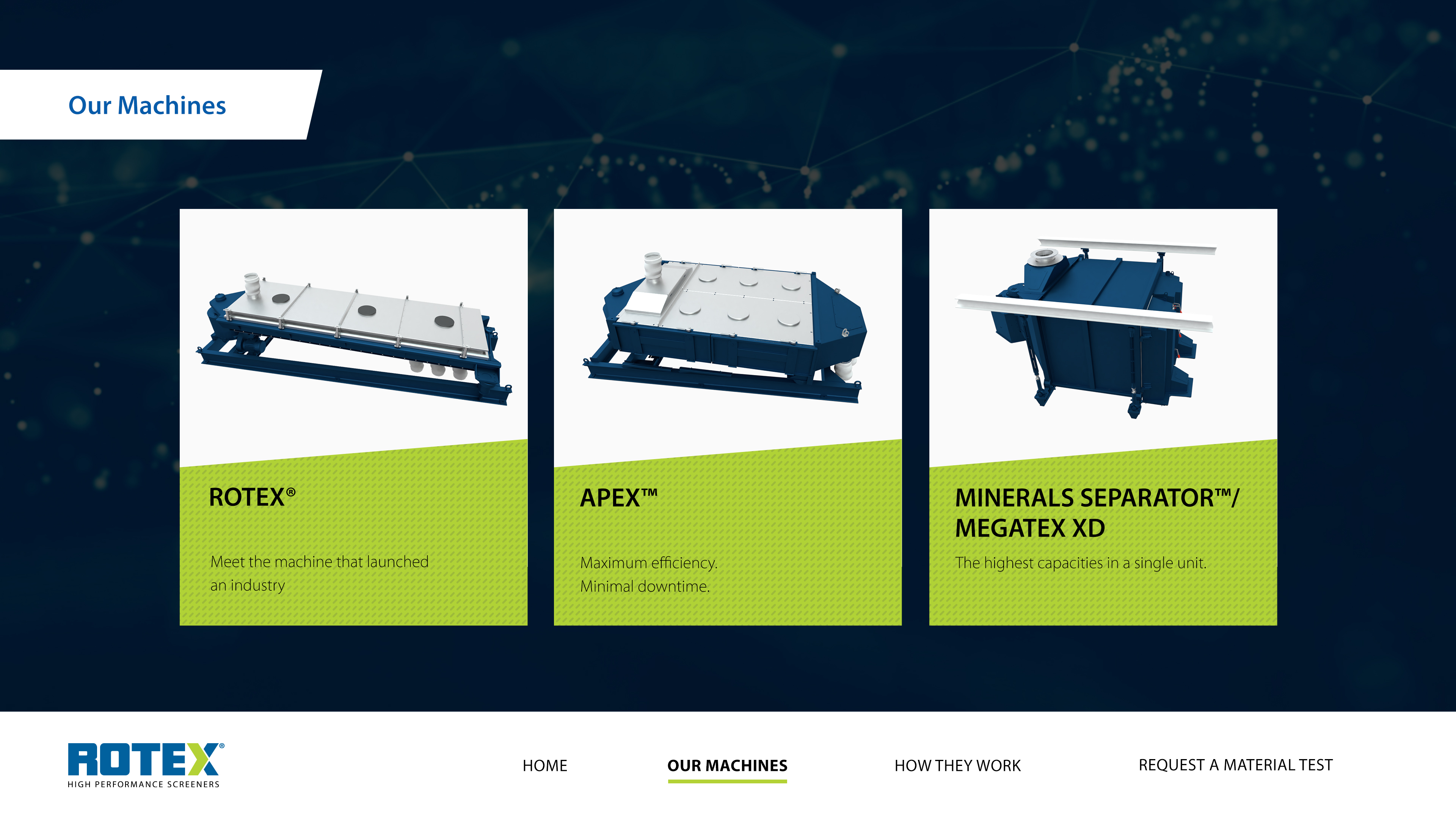

Our Machines
ROTEX®
Meet the machine that launched an industry
APEX™
Maximum efficiency. Minimal downtime.
Minerals Separator™/ MEGATEX XD
The highest capacities in a single unit.

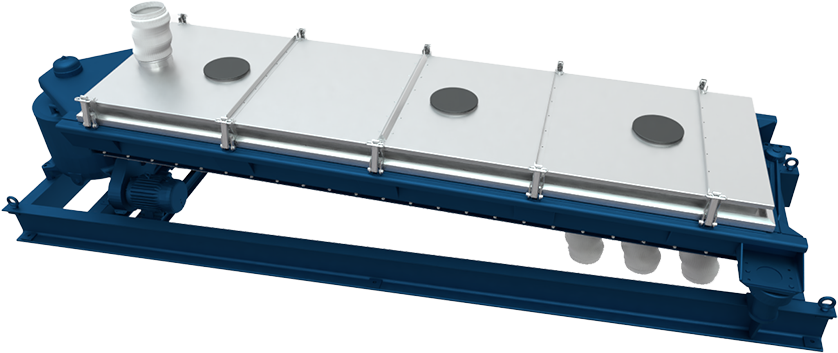

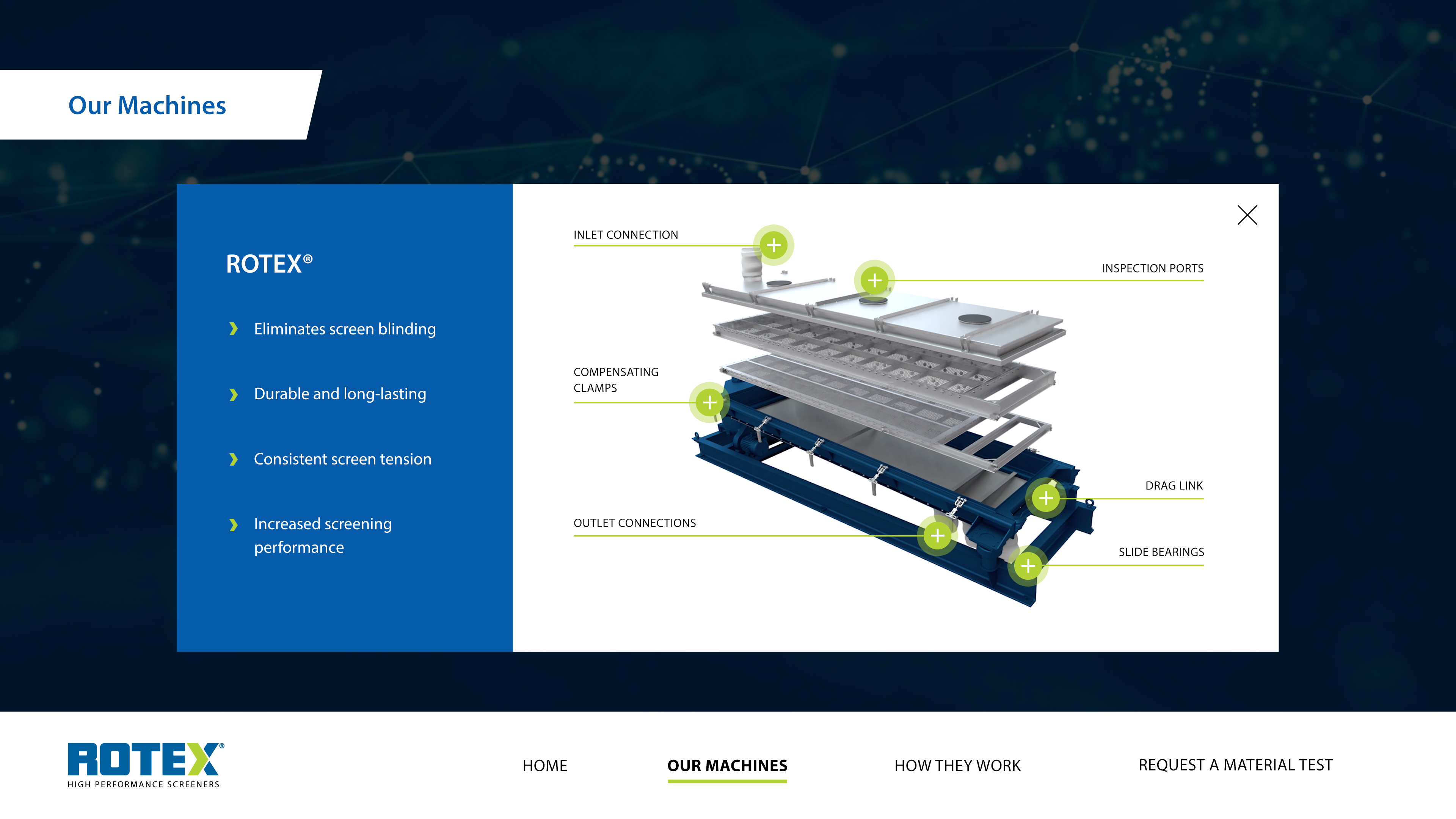

ROTEX®
Eliminates screen blinding
Durable and long-lasting
Consistent screen tension
Increased screening performance
INLET CONNECTION
COMPENSATING CLAMPS
OUTLET CONNECTIONS
INSPECTION PORTS
DRAG LINK
SLIDE BEARINGS
Outlet and inlet connection
Rotex customizes each machine configuration to match the exact application needs. Connection options range from rubber to sanitary BFM connections to nutating connections. Ask your rep which is right for you.
COMPENSATING CLAMPS
Patented adjustable clamps ensure uniform sealing of cover and screen decks. The screens are attached using Rotex tensioning clips, which automatically draw the correct tension on the screen clothing.
Outlet and inlet connection
Rotex customizes each machine configuration to match the exact application needs. Connection options range from rubber to sanitary BFM connections to nutating connections. Ask your rep which is right for you.
Inspection ports
When the machine is stopped, you can easily remove the inspection cap and ensure the screener is operating correctly. This could include inspections for screen blinding, screen tears or material buildup.
Drag link
The drag link converts the gyratory motion created by the drive head to reciprocating motion for precise, near-size separation.
Slide Bearings
Only sliding friction is generated with our slide bearings, ensuring they are lightweight and have a long operating life while introducing minimal vibrations or noise.

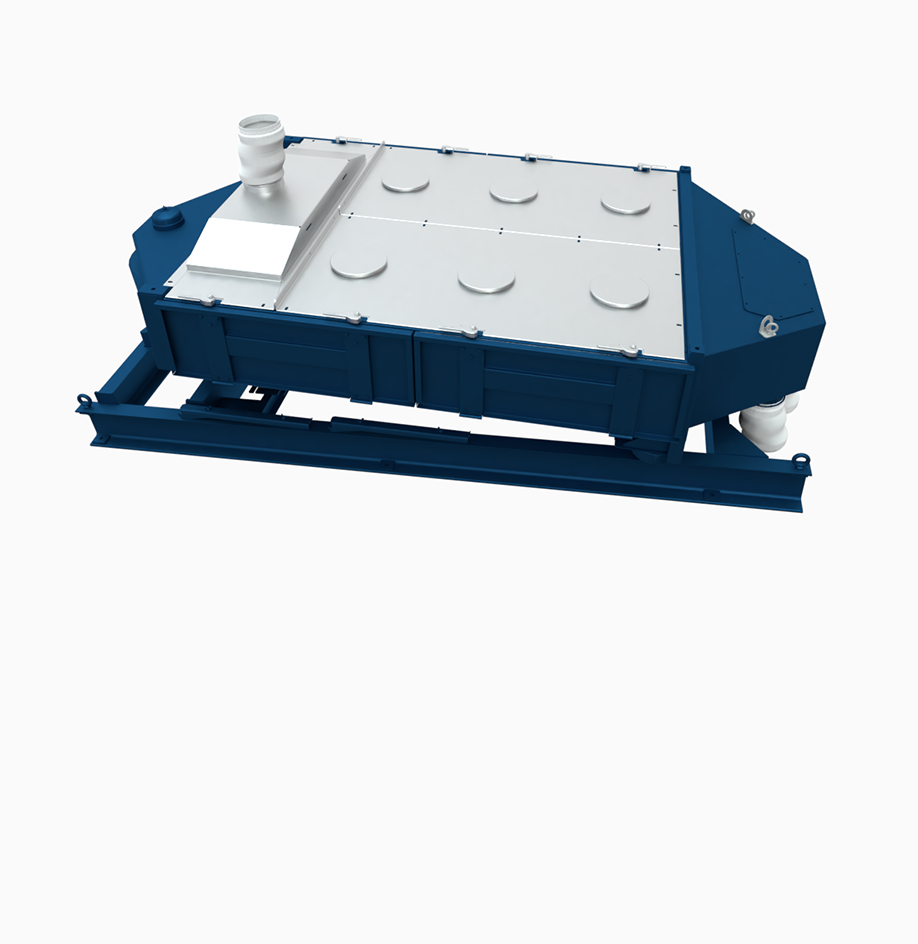

APEX™
Ergonomic design
Quick screen changes
Increased screening performance
Customizable
INLET CONNECTION
DRIVE HEAD
SCREEN ACCESS
DOORS
INSPECTION PORTS
DRAG LINK
OUTLET CONNECTIONS
Outlet and inlet connection
Rotex customizes each machine configuration to match the exact application needs. Connection options range from rubber to sanitary BFM connections to nutating connections. Ask your rep which is right for you.
DRIVE HEAD
Rotex drive heads come in three configurations.
• Single Weight Drive: Used on smaller machines
• Dynamic Absorber Drive
• Gear Drive
Screen Access Doors
Side access doors combined with pre-tensioned screen panels allow a single operator to change the entire machine in minutes.
Inspection ports
When the machine is stopped, you can easily remove the inspection cap and ensure the screener is operating correctly. This could include inspections for screen blinding, screen tears or material buildup.
Drag link
The drag link converts the gyratory motion created by the drive head to reciprocating motion for precise, near-size separation.
Outlet and inlet connection
Rotex customizes each machine configuration to match the exact application needs. Connection options range from rubber to sanitary BFM connections to nutating connections. Ask your rep which is right for you.
More uptime, more profit
Durable and long-lasting
DISCHARGE CHUTE
Discharge chute
Customize the discharge chute by adding hinges to improve accessibility for product cleanouts and inspections.

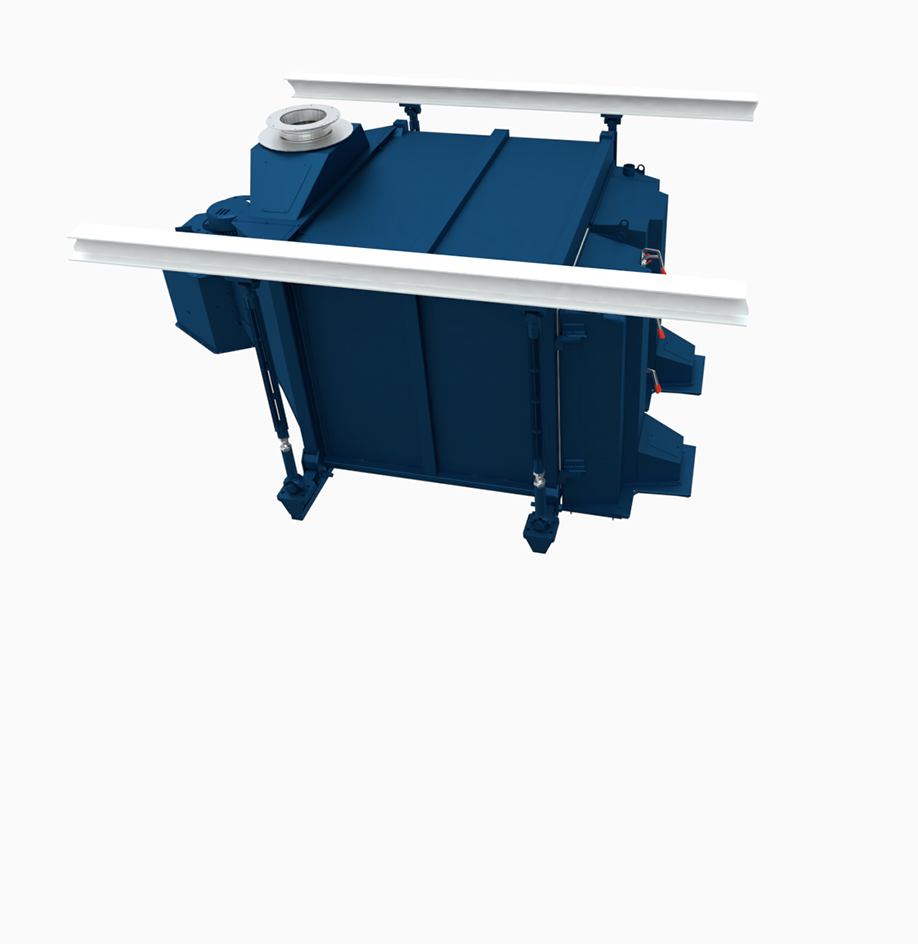

Minerals Separator™/ MEGATEX XD
Reduced downtime
No product leakage
Durable and long-lasting
Consistent screen tension
SLIDING INLET
DRIVE
UNIVERSAL JOINTS
EASY ACCESS DOORS
BRUSH DISCHARGE
Sliding inlet
The sliding inlet eliminates the hassle associated with flexible connections. Say good-bye to torn flexible connections, and improve plant safety. A Teflon™ wear ring and close running flange to allow for movement of the machine.
DRIVE
A simple reactionary drive cartridge incorporating two spherical roller bearings provides years of longevity.
Universal joints
Universal joints accommodate the torsional forces created by the unique Rotex Gyratory Reciprocating Motion while bearing the entire weight of the machine. In addition, 500 to 1,000 pounds of abrasion-resistant liners ensure your machine will withstand any application.
EASY ACCESS DOORS
Customized heavy-duty DESTACO door clamps allow quick and easy screen access.
BRUSH DISCHARGE
Using brush discharge connections eliminates the challenges caused by flexible outlet connections, including reducing dust, containing separated product fractions, and increasing the life of the machine by up to 10x.
Independent screen access
