RTX360 Features

The RTX360

Unrivaled Performance and Expertise in a Compact, Economical Design

INTRODUCING

Click to learn more

VIBRATORY MOTION

The RTX360 Circular Vibratory Screener is capable of moving the product in all the motions depicted to the right. The motor consists of two weighted shafts. The bottom shaft leads the top, the angle of which is dependent on the setting. Each motion has a specific purpose depending on the screening requirements. Request free materials testing to learn what's best for your application. The vibratory motion utilized by the RTX360 exerts a G Load which binds the product to the screen.

0° Lead

Dry material is thrown in a straight trajectory. This may result in insufficient separation.

20° Lead

Dry material begins to span out in a spiralling pattern across the screen.

40° Lead

Gives dry material the maximum, efficient screening pattern. Typical motion for most applications.

60° Lead

Wet material attains maximum efficiency in terms of the screening pattern.

90-120° Lead

Higher settings prevent oversize material from being discharged and assist in receiving maximum throughput of fine material which tends to "ball."

1 OF 5

2 OF 5

3 OF 5

4 OF 5

5 OF 5

CONTINUE

Save even more space with the Low Profile product line, featuring two side-mounted motors, a center flow-through single deck, and sizes ranging from 36" to 60".

The positioning of the drive ensures it is easily accessible. In addition, toolless adjustability allows you to easily optimize and tailor the screening motion to your application.

Adapt to your specific application by locating the outlet position, installing de-blinding components and adding more decks as required.

A small footprint allows for a minimal floor space requirement and facilitates a quick and easy installation process.

FEATURES

BENEFITS

Optimum Performance - the adjustable nature of the RTX360 Circular Vibratory Screeners allows for greater screening performance, increasing efficiency and productivity.

Longevity and Durability - designed for long-term, dependable service with minimal maintenance required.

Quick Screen Changes - pre-tensioned panels allow 1-2 operators to change the entire machine within minutes.

Increased Performance and Expertise - Rotex's expertise and product line options deliver greater efficiencies and solutions for any screening, separating, or sieving requirements.

Customizable - both the Side Discharge and Low Profile options are available for this machine; ask your Rotex representative how we can fully customize it to suit your specific needs.

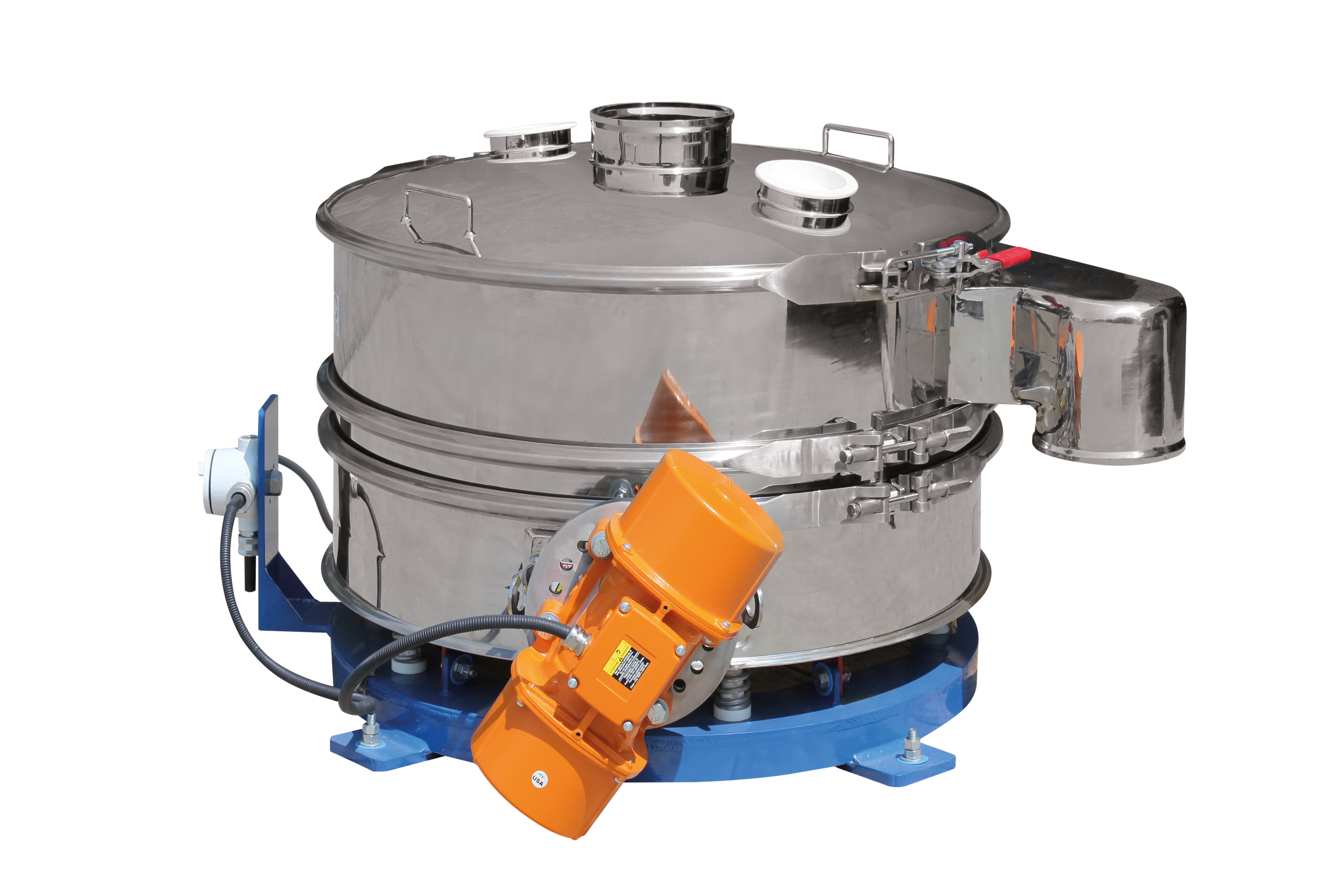

Low Profile Option

Accessible Drive

Customizable Options

Compact Design

Click to show benefits

The option of quick release clamp rings allows for more streamlined frame removal and faster screen changes when compared to the standard tooled clamp rings.

Quick Release Clamping
